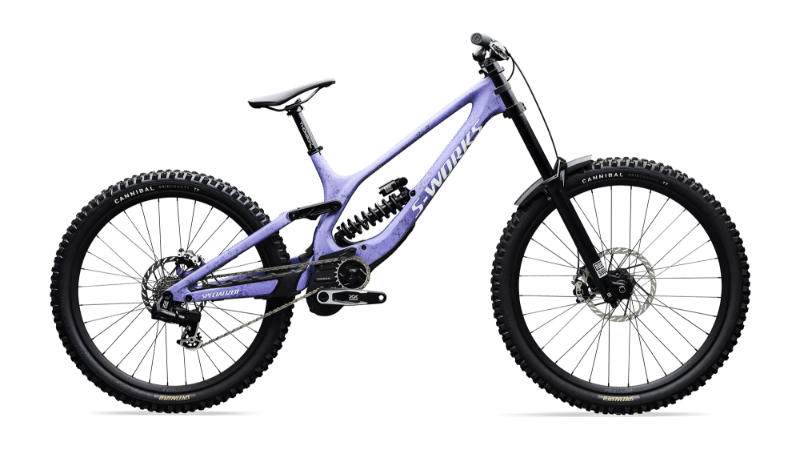

2026 Specialized S-Works Demo 11 geometry
Full frame geometry for the 2026 Specialized S-Works Demo 11, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S3 | 640 | 445 | 78 | 62.5 | 110 | 582 | 400 | 20 | 825 | 435 | 1260 | 52 | 137 |
| S4 | 640 | 475 | 78 | 62.5 | 110 | 614 | 420 | 20 | 857 | 445 | 1302 | 52 | 137 |
| S5 | 640 | 500 | 78 | 62.5 | 110 | 637 | 420 | 20 | 880 | 455 | 1335 | 52 | 137 |
All measurements in millimetres unless marked (°) for angles.
