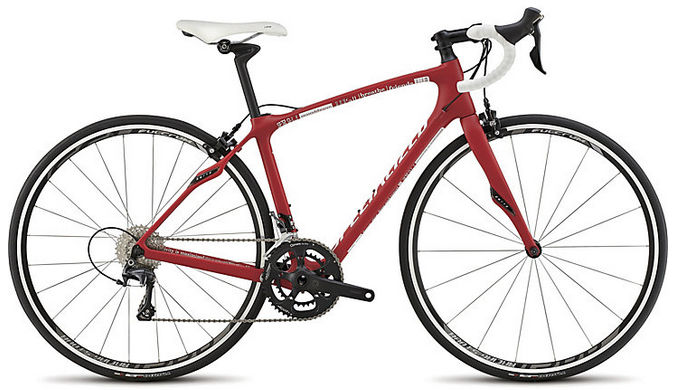

2013 Specialized Ruby SL2 geometry
Full frame geometry for the 2013 Specialized Ruby SL2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 518 | 358 | 74.5 | 70.3 | 120 | 509 | 363 | 504 | 73 | 577 | 412 | 977 | 51 | 68 |
| 48 | 531 | 370 | 74.5 | 71.3 | 130 | 522 | 392 | 560 | 73 | 584 | 415 | 988 | 51 | 62 |
| 51 | 546 | 370 | 74 | 71.5 | 145 | 529 | 422 | 642 | 73 | 587 | 415 | 991 | 51 | 60 |
| 54 | 568 | 374 | 74 | 72 | 165 | 539 | 457 | 668 | 73 | 591 | 415 | 995 | 49 | 59 |
| 57 | 590 | 390 | 73.5 | 72 | 190 | 566 | 487 | 692 | 72 | 614 | 417 | 1021 | 49 | 59 |
All measurements in millimetres unless marked (°) for angles.
