2022 Specialized · MH

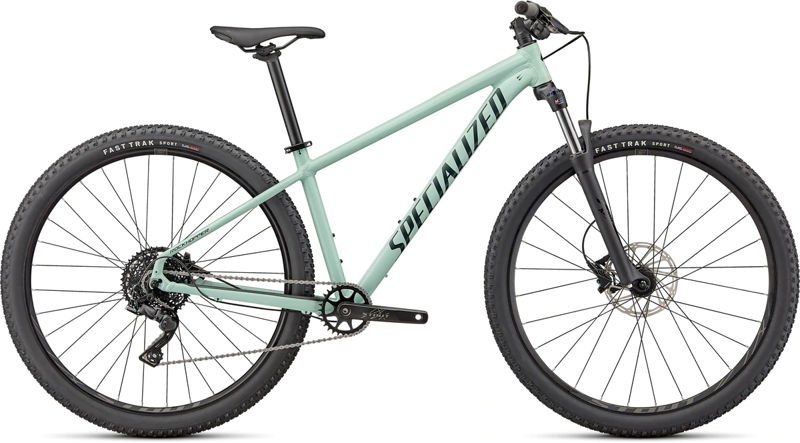

2022 Specialized Rockhopper Comp 27.5 geometry
Full frame geometry for the 2022 Specialized Rockhopper Comp 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 559 | 375 | 73.5 | 68 | 95 | 541 | 658 | 43 | 630 | 1067 | 42 | 97 |
| S | 573 | 395 | 73.5 | 68 | 100 | 565 | 695 | 43 | 656 | 1092 | 42 | 97 |
| M | 589 | 415 | 73.5 | 68 | 105 | 589 | 735 | 43 | 682 | 1118 | 42 | 97 |
All measurements in millimetres unless marked (°) for angles.
