2018 Specialized · UP

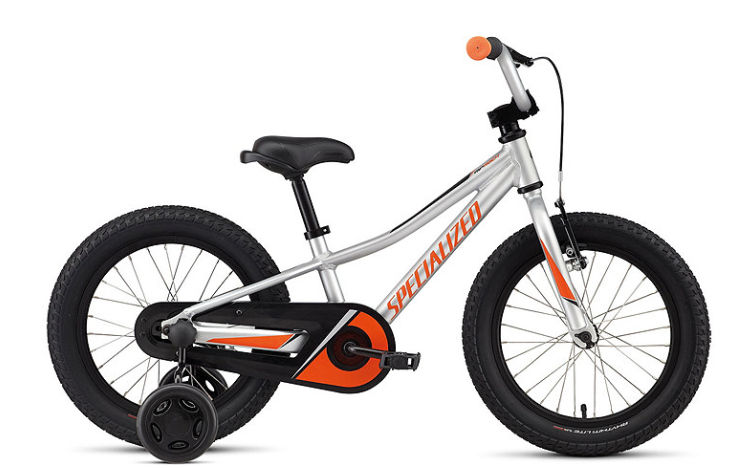

2018 Specialized Riprock 16 Coaster geometry
Full frame geometry for the 2018 Specialized Riprock 16 Coaster, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 358 | 272 | 71 | 70 | 80 | 395 | 210 | 405 | 27 | 399 | 310 | 707 | 5 | 72 |
All measurements in millimetres unless marked (°) for angles.
