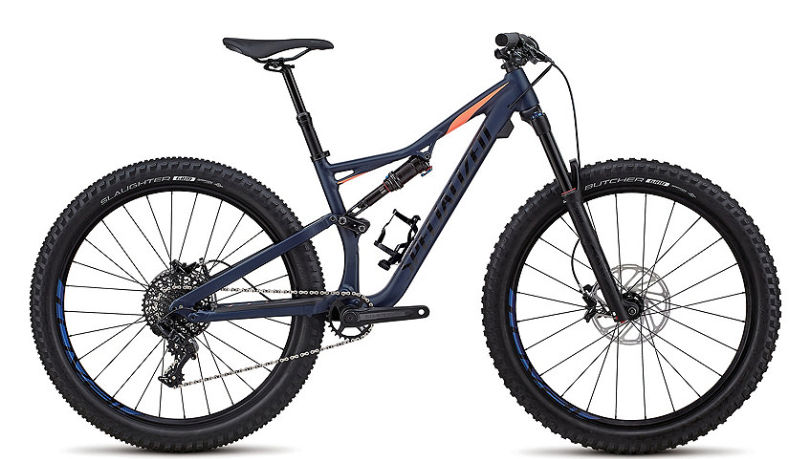

2018 Specialized Rhyme geometry
Full frame geometry for the 2018 Specialized Rhyme, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 616 | 371 | 74.5 | 67 | 95 | 538 | 386 | 732 | 33 | 673 | 437 | 1106 | 51 | 97 |
| M | 618 | 413 | 74 | 67 | 95 | 590 | 430 | 761 | 33 | 714 | 437 | 1149 | 51 | 97 |
| S | 618 | 386 | 74 | 67 | 95 | 563 | 396 | 754 | 33 | 687 | 437 | 1122 | 51 | 97 |
| L | 645 | 435 | 75 | 67.5 | 125 | 611 | 468 | 766 | 36 | 738 | 437 | 1172 | 46 | 104 |
All measurements in millimetres unless marked (°) for angles.
