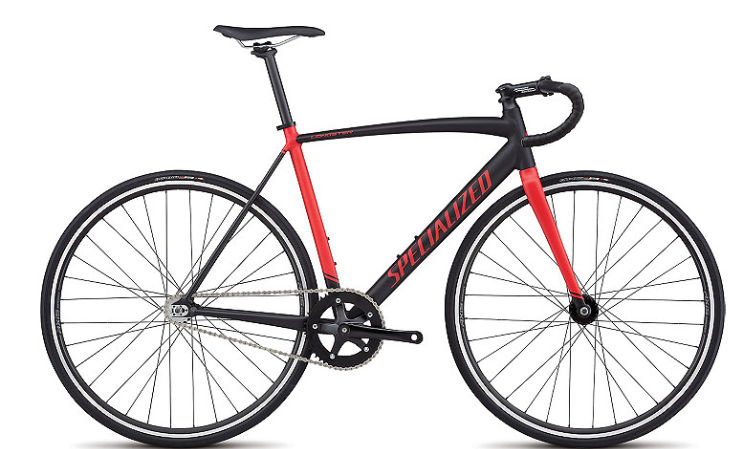

2018 Specialized Langster MKII geometry
Full frame geometry for the 2018 Specialized Langster MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 480 | 362 | 74 | 71 | 95 | 499 | 410 | 713 | 55 | 558 | 396 | 948 | 45 | 69 |
| 49 | 488 | 372 | 74 | 72 | 100 | 512 | 440 | 733 | 55 | 562 | 396 | 952 | 45 | 63 |
| 52 | 503 | 384 | 74 | 73 | 115 | 528 | 480 | 763 | 52 | 571 | 395 | 960 | 45 | 56 |
| 54 | 517 | 390 | 74 | 73 | 130 | 538 | 500 | 780 | 52 | 581 | 395 | 970 | 45 | 56 |
| 56 | 537 | 403 | 74 | 74 | 150 | 557 | 520 | 802 | 50 | 591 | 394 | 980 | 45 | 50 |
| 58 | 556 | 409 | 74 | 74 | 170 | 568 | 540 | 821 | 50 | 603 | 394 | 992 | 45 | 50 |
| 61 | 573 | 420 | 74 | 74 | 190 | 584 | 570 | 846 | 48 | 619 | 393 | 1008 | 45 | 50 |
All measurements in millimetres unless marked (°) for angles.
