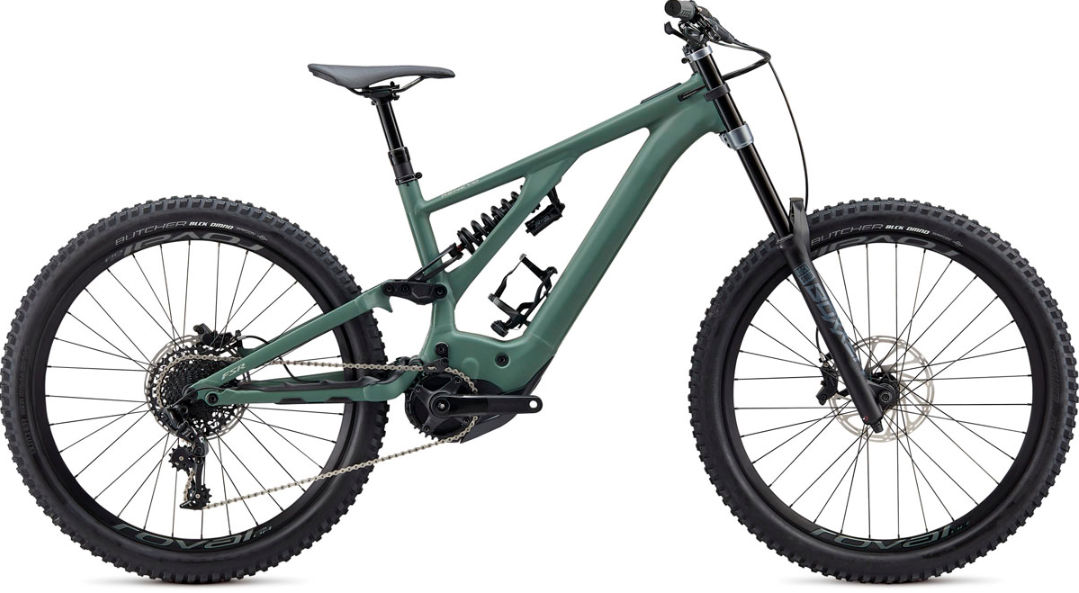

2020 Specialized Kenevo geometry
Full frame geometry for the 2020 Specialized Kenevo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 605 | 445 | 77 | 64 | 105 | 585 | 400 | 794 | 14 | 780 | 545 | 1234 | 42 | 128 |
| S3 | 614 | 470 | 77 | 64 | 115 | 612 | 420 | 794 | 14 | 809 | 545 | 1263 | 42 | 128 |
| S4 | 623 | 495 | 77 | 64 | 125 | 639 | 440 | 794 | 14 | 839 | 545 | 1293 | 42 | 128 |
| S5 | 632 | 520 | 77 | 64 | 135 | 666 | 465 | 794 | 14 | 868 | 545 | 1322 | 42 | 128 |
All measurements in millimetres unless marked (°) for angles.
