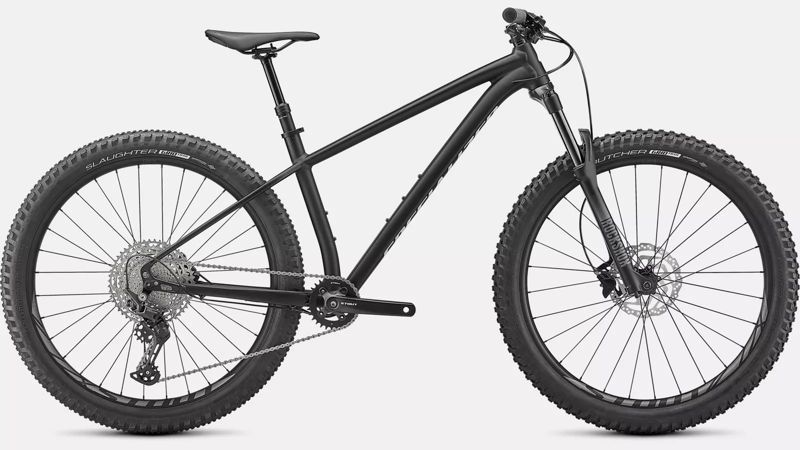

2021 Specialized Fuse 27.5 geometry
Full frame geometry for the 2021 Specialized Fuse 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|
| - XS | 602 | 400 | 74 | 66 | 105 | 573 | 695 | 1120 | 113 |
| - M | 603 | 440 | 74 | 66 | 105 | 613 | 735 | 1160 | 113 |
| - S | 603 | 420 | 74 | 66 | 105 | 593 | 715 | 1140 | 113 |
| L | 615 | 460 | 74 | 66 | 120 | 637 | 761 | 1186 | 113 |
| XL | 630 | 480 | 74 | 66 | 135 | 661 | 787 | 1213 | 113 |
All measurements in millimetres unless marked (°) for angles.
