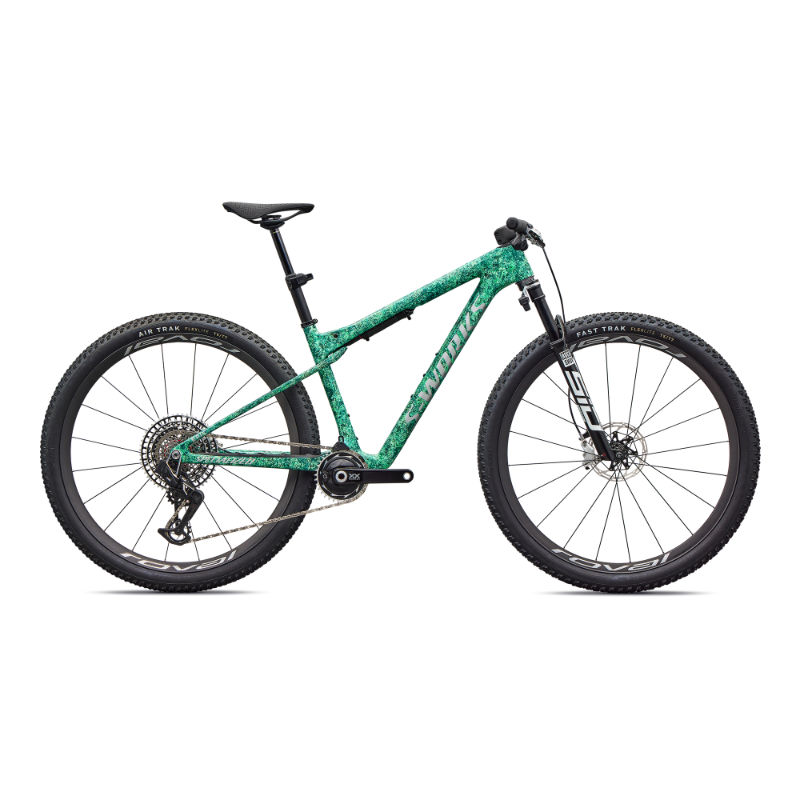

2026 Specialized Epic World Cup geometry
Full frame geometry for the 2026 Specialized Epic World Cup, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 600 | 440 | 74.5 | 66.5 | 95 | 612 | 410 | 764 | 57 | 726 | 430 | 1150 | 44 | 113 |
| S | 600 | 415 | 74.5 | 66.5 | 93 | 581 | 395 | 761 | 58 | 701 | 430 | 1124 | 44 | 113 |
| L | 614 | 465 | 74.5 | 66.5 | 110 | 641 | 450 | 774 | 57 | 757 | 430 | 1181 | 44 | 113 |
| XL | 628 | 490 | 74.5 | 66.5 | 125 | 670 | 500 | 786 | 57 | 788 | 430 | 1212 | 44 | 113 |
All measurements in millimetres unless marked (°) for angles.
