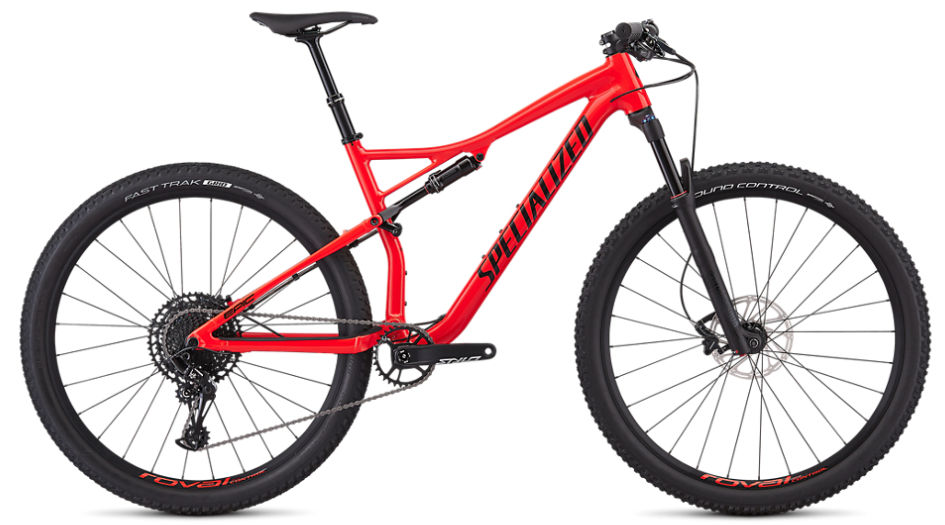

2019 Specialized Epic Evo Aluminium geometry
Full frame geometry for the 2019 Specialized Epic Evo Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 398 | 73.8 | 68.5 | 95 | 571 | 400 | 772 | 32 | 667 | 438 | 1103 | 43 | 99 |
| M | 605 | 423 | 73.8 | 68.5 | 105 | 599 | 434 | 777 | 32 | 695 | 438 | 1132 | 43 | 99 |
| L | 619 | 446 | 73.8 | 68.5 | 120 | 626 | 470 | 782 | 32 | 723 | 438 | 1159 | 43 | 99 |
| XL | 638 | 465 | 73.8 | 68.5 | 140 | 650 | 520 | 804 | 32 | 749 | 438 | 1186 | 43 | 99 |
All measurements in millimetres unless marked (°) for angles.
