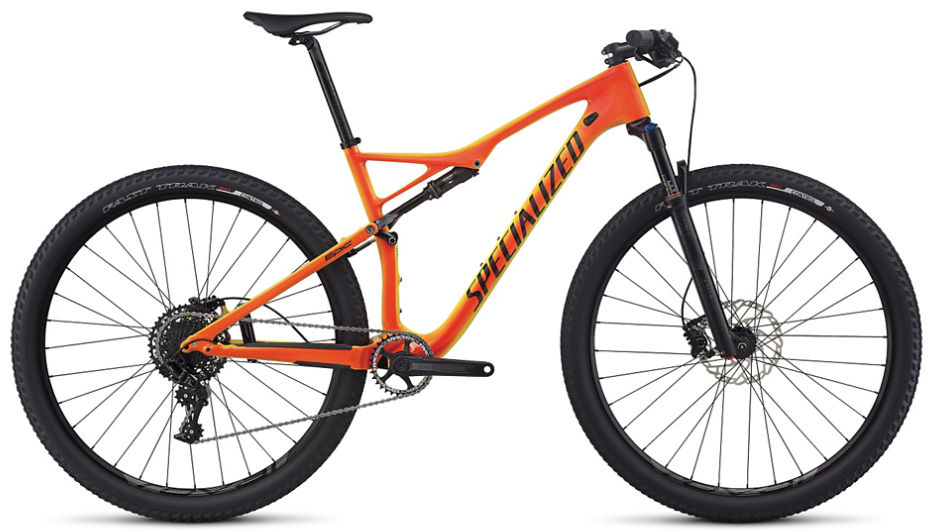

2016 Specialized Epic Carbon World Cup geometry
Full frame geometry for the 2016 Specialized Epic Carbon World Cup, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 398 | 74.3 | 71 | 90 | 562 | 400 | 770 | 40 | 439 | 1073 |
| M | 597 | 423 | 74.3 | 71 | 105 | 592 | 434 | 774 | 40 | 439 | 1103 |
| L | 611 | 446 | 74.3 | 71 | 120 | 618 | 470 | 780 | 40 | 439 | 1131 |
| XL | 630 | 465 | 74.3 | 71 | 140 | 643 | 520 | 793 | 40 | 439 | 1157 |
All measurements in millimetres unless marked (°) for angles.
