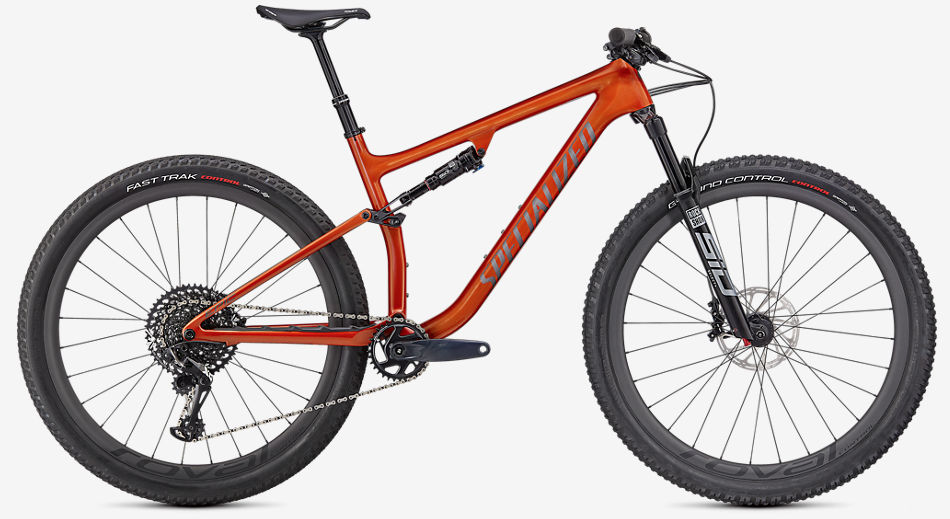

2020 Specialized Epic Carbon MKIII geometry
Full frame geometry for the 2020 Specialized Epic Carbon MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 415 | 75.8 | 67.5 | 95 | 400 | 763 | 48 | 687 | 433 | 1116 | 44 | 106 |
| M | 591 | 445 | 75.5 | 67.5 | 100 | 430 | 766 | 48 | 719 | 433 | 1148 | 44 | 106 |
| XS | 596 | 390 | 76.5 | 67.5 | 95 | 375 | 740 | 58 | 663 | 433 | 1090 | 44 | 106 |
| L | 605 | 470 | 75.5 | 67.5 | 115 | 470 | 776 | 48 | 750 | 433 | 1179 | 44 | 106 |
| XL | 623 | 495 | 75.5 | 67.5 | 135 | 520 | 788 | 48 | 782 | 433 | 1211 | 44 | 106 |
All measurements in millimetres unless marked (°) for angles.
