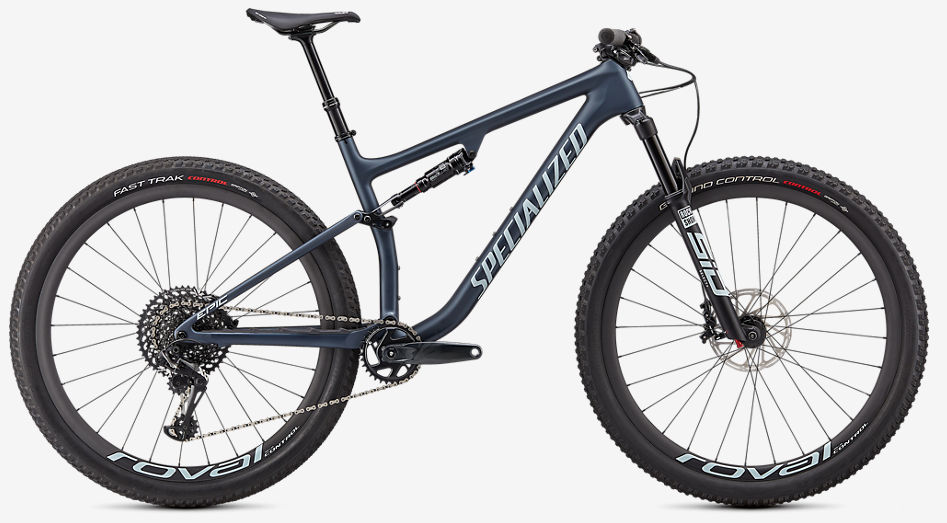

2020 Specialized Epic Carbon MKIII Evo geometry
Full frame geometry for the 2020 Specialized Epic Carbon MKIII Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 406 | 74.8 | 66.5 | 95 | 400 | 779 | 36 | 697 | 438 | 1132 | 44 | 114 |
| M | 597 | 436 | 74.5 | 66.5 | 100 | 430 | 781 | 36 | 729 | 438 | 1164 | 44 | 114 |
| XS | 603 | 380 | 75.5 | 66.5 | 95 | 375 | 760 | 46 | 672 | 438 | 1106 | 44 | 114 |
| L | 611 | 460 | 74.5 | 66.5 | 115 | 470 | 793 | 36 | 759 | 438 | 1194 | 44 | 114 |
| XL | 629 | 485 | 74.5 | 66.5 | 135 | 520 | 804 | 36 | 792 | 438 | 1227 | 44 | 114 |
All measurements in millimetres unless marked (°) for angles.
