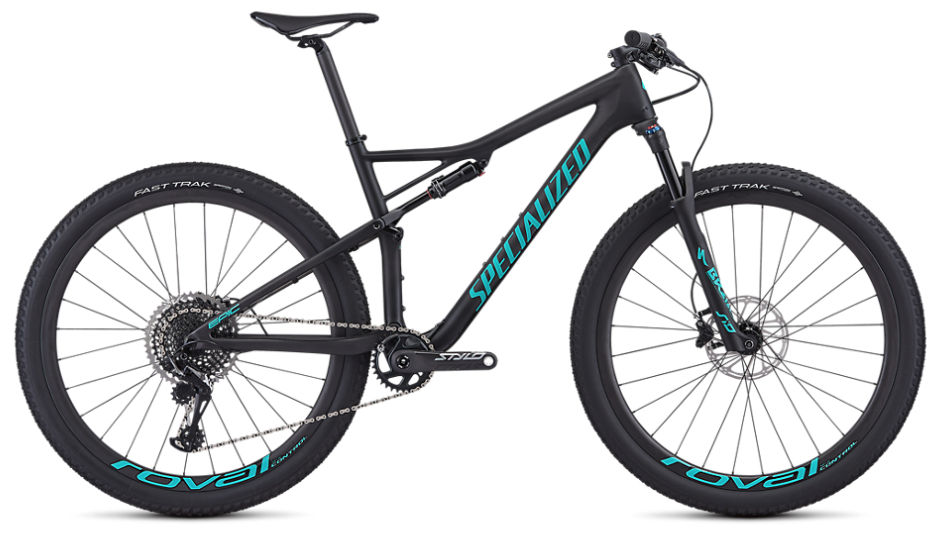

2017 Specialized Epic Carbon MKII geometry
Full frame geometry for the 2017 Specialized Epic Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 408 | 74.8 | 69.5 | 95 | 568 | 400 | 764 | 39 | 659 | 438 | 1095 | 42 | 94 |
| M | 597 | 433 | 74.8 | 69.5 | 105 | 595 | 434 | 770 | 39 | 688 | 438 | 1123 | 42 | 94 |
| L | 611 | 456 | 74.8 | 69.5 | 120 | 623 | 470 | 776 | 39 | 716 | 438 | 1152 | 42 | 94 |
| XL | 630 | 475 | 74.8 | 69.5 | 140 | 649 | 520 | 799 | 39 | 742 | 438 | 1178 | 42 | 94 |
All measurements in millimetres unless marked (°) for angles.
