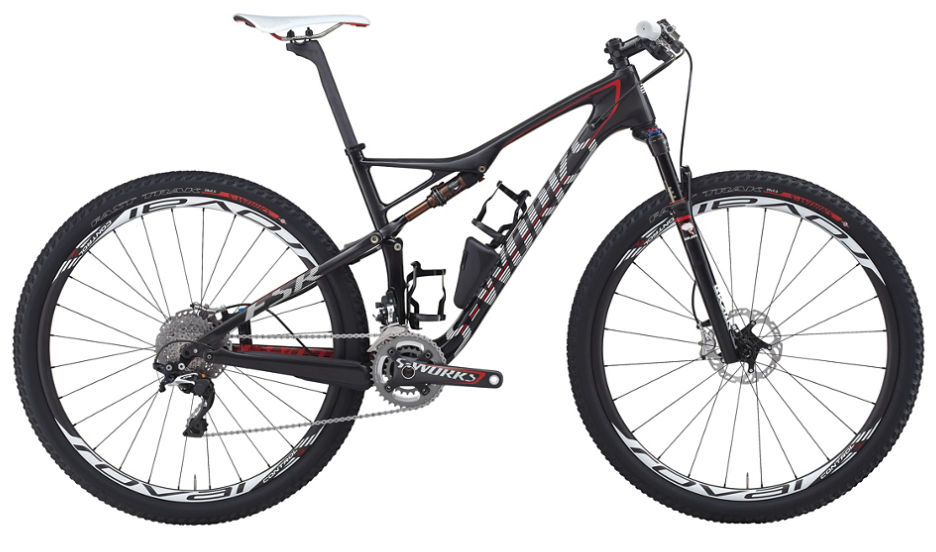

2014 Specialized Epic Carbon MKI geometry
Full frame geometry for the 2014 Specialized Epic Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 393 | 73.8 | 70.5 | 90 | 564 | 400 | 770 | 40 | 448 | 1082 |
| M | 601 | 418 | 73.8 | 70.5 | 105 | 593 | 434 | 774 | 40 | 448 | 1112 |
| L | 615 | 441 | 73.8 | 70.5 | 120 | 620 | 470 | 780 | 40 | 448 | 1140 |
| XL | 634 | 462 | 73.8 | 70.5 | 140 | 647 | 520 | 793 | 40 | 448 | 1168 |
All measurements in millimetres unless marked (°) for angles.
