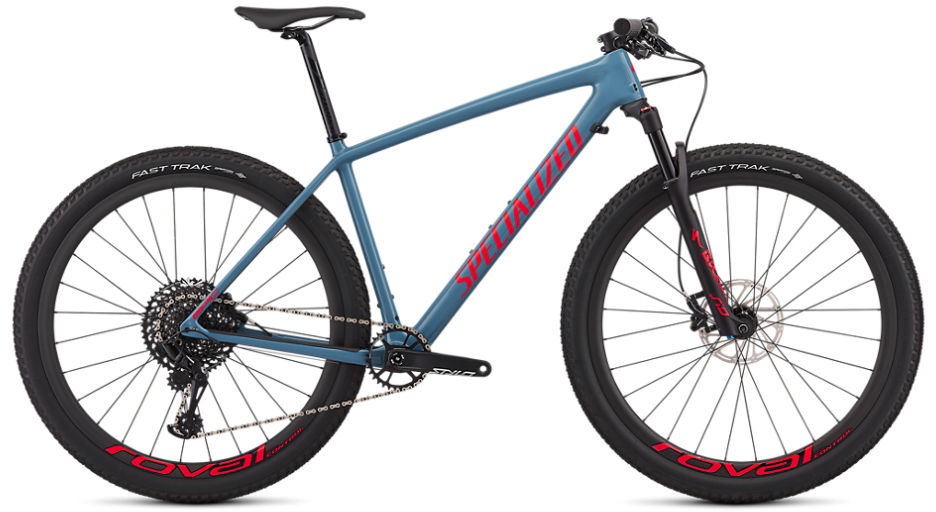

2018 Specialized Epic Carbon Hardtail geometry
Full frame geometry for the 2018 Specialized Epic Carbon Hardtail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 589 | 380 | 74 | 69.8 | 95 | 549 | 370 | 731 | 61 | 631 | 430 | 1054 | 51 | 82 |
| S | 599 | 395 | 74 | 69.8 | 95 | 568 | 400 | 400 | 61 | 650 | 430 | 1073 | 51 | 82 |
| M | 608 | 418 | 74 | 69.8 | 95 | 595 | 430 | 430 | 61 | 676 | 430 | 1099 | 51 | 82 |
| L | 622 | 441 | 74 | 69.8 | 110 | 623 | 470 | 470 | 61 | 705 | 430 | 1128 | 51 | 82 |
| XL | 637 | 462 | 74 | 69.8 | 125 | 649 | 520 | 520 | 61 | 731 | 430 | 1154 | 51 | 82 |
All measurements in millimetres unless marked (°) for angles.
