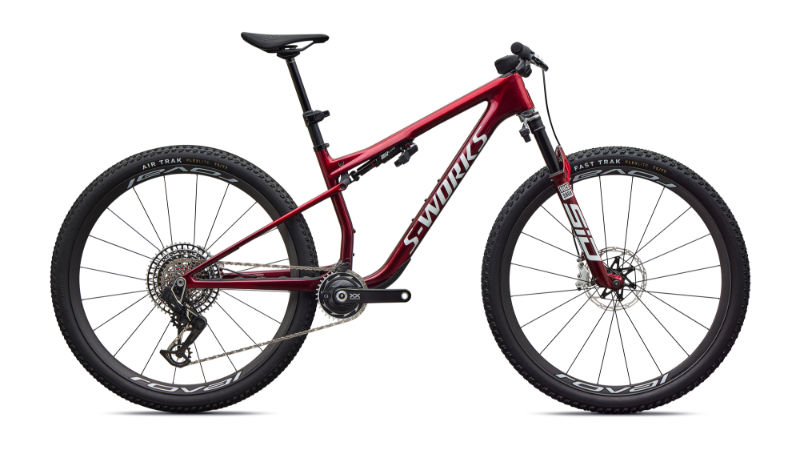

2026 Specialized Epic 9 geometry
Full frame geometry for the 2026 Specialized Epic 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 420 | 76 | 65.9 | 92 | 568 | 390 | 749 | 42 | 716 | 435 | 1148 | 44 | 120 |
| M | 604 | 450 | 76 | 65.9 | 105 | 601 | 410 | 755 | 40 | 752 | 435 | 1184 | 44 | 120 |
| L | 618 | 480 | 76 | 65.9 | 120 | 634 | 455 | 757 | 40 | 788 | 438 | 1223 | 44 | 120 |
| XL | 645 | 505 | 76 | 65.9 | 150 | 666 | 505 | 764 | 40 | 823 | 442 | 1264 | 44 | 120 |
All measurements in millimetres unless marked (°) for angles.
