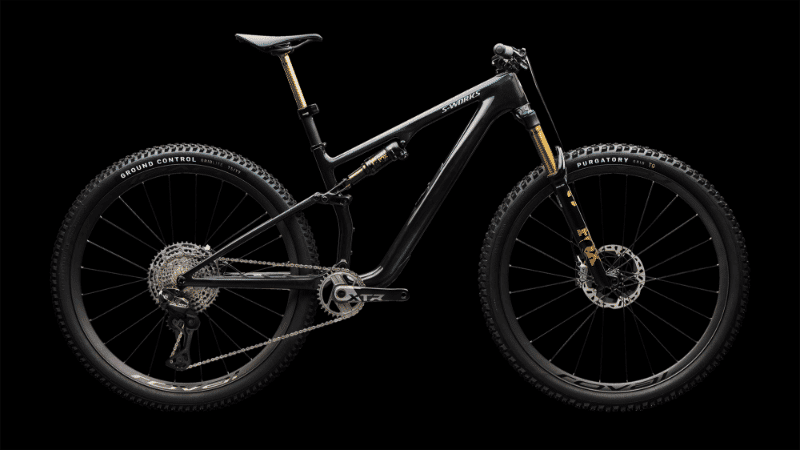

2026 Specialized Epic 8 EVO geometry
Full frame geometry for the 2026 Specialized Epic 8 EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 415 | 75.5 | 65.9 | 92 | 569 | 390 | 761 | 43 | 720 | 435 | 1151 | 44 | 120 |
| M | 601 | 445 | 75 | 65.9 | 95 | 605 | 410 | 766 | 41 | 751 | 435 | 1183 | 44 | 120 |
| L | 613 | 470 | 75 | 65.9 | 110 | 633 | 450 | 775 | 39 | 782 | 435 | 1214 | 44 | 120 |
| XL | 632 | 495 | 75 | 65.9 | 130 | 662 | 500 | 779 | 39 | 815 | 435 | 1247 | 44 | 120 |
All measurements in millimetres unless marked (°) for angles.
