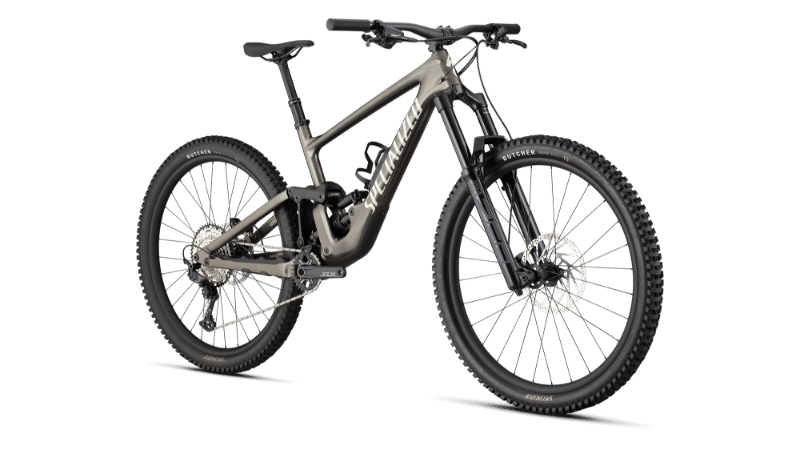

2025 Specialized Enduro geometry
Full frame geometry for the 2025 Specialized Enduro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 616 | 437 | 76 | 63.9 | 95 | 591 | 400 | 28 | 777 | 442 | 1217 | 46 | 132 |
| S3 | 620 | 464 | 76 | 63.9 | 100 | 619 | 420 | 28 | 806 | 442 | 1246 | 46 | 132 |
| S4 | 629 | 487 | 76 | 63.9 | 110 | 644 | 440 | 28 | 833 | 442 | 1274 | 46 | 132 |
| S5 | 638 | 511 | 76 | 63.9 | 120 | 670 | 465 | 28 | 862 | 442 | 1302 | 46 | 132 |
All measurements in millimetres unless marked (°) for angles.
