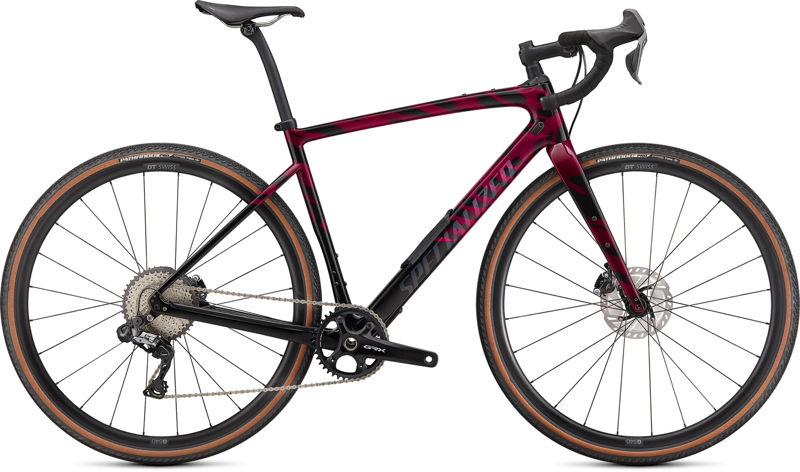

2021 Specialized Diverge Series geometry
Full frame geometry for the 2021 Specialized Diverge Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 568 | 357 | 74.5 | 69.5 | 99 | 515 | 363 | 683 | 80 | 604 | 425 | 1016 | 55 | 72 |
| 49 | 571 | 365 | 74 | 70 | 99 | 529 | 390 | 700 | 80 | 607 | 425 | 1019 | 55 | 69 |
| 52 | 577 | 374 | 73.8 | 70.5 | 104 | 542 | 430 | 725 | 80 | 614 | 425 | 1026 | 55 | 66 |
| 54 | 592 | 383 | 73.5 | 71.3 | 116 | 558 | 470 | 754 | 80 | 620 | 425 | 1032 | 55 | 61 |
| 56 | 610 | 392 | 73.5 | 71.8 | 133 | 573 | 500 | 779 | 80 | 630 | 425 | 1042 | 55 | 57 |
| 58 | 634 | 401 | 73.5 | 71.8 | 159 | 589 | 530 | 805 | 80 | 647 | 425 | 1059 | 55 | 57 |
| 61 | 659 | 410 | 73.5 | 71.8 | 185 | 605 | 560 | 832 | 80 | 664 | 425 | 1076 | 55 | 57 |
| 64 | 684 | 419 | 73 | 72.3 | 209 | 628 | 590 | 859 | 80 | 675 | 425 | 1088 | 55 | 54 |
All measurements in millimetres unless marked (°) for angles.
