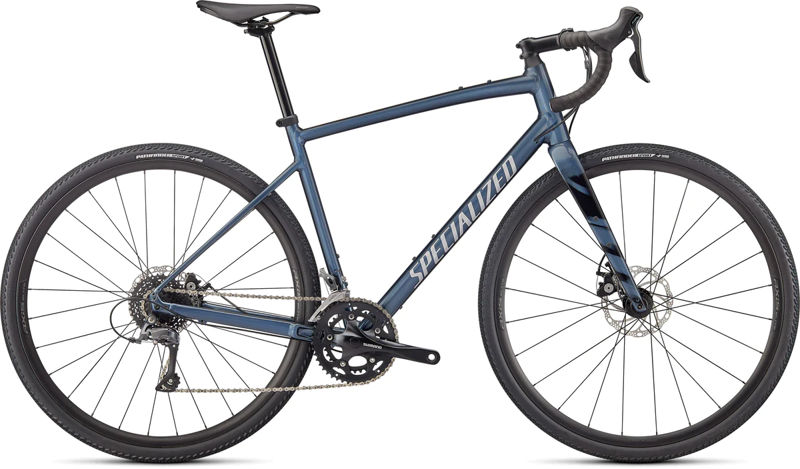

2022 Specialized Diverge E5 geometry
Full frame geometry for the 2022 Specialized Diverge E5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 529 | 357 | 74.5 | 69.5 | 110 | 504 | 363 | 680 | 80 | 589 | 432 | 1008 | 72 |
| 49 | 545 | 365 | 74 | 70 | 125 | 521 | 390 | 703 | 80 | 598 | 432 | 1017 | 69 |
| 52 | 561 | 374 | 73.8 | 70.5 | 140 | 538 | 430 | 723 | 80 | 608 | 432 | 1027 | 66 |
| 54 | 578 | 383 | 73.5 | 71.3 | 155 | 554 | 470 | 763 | 80 | 615 | 432 | 1035 | 61 |
| 56 | 599 | 392 | 73.5 | 71.8 | 175 | 570 | 500 | 789 | 80 | 626 | 432 | 1046 | 57 |
| 58 | 618 | 401 | 73.5 | 71.8 | 195 | 584 | 530 | 808 | 80 | 641 | 432 | 1061 | 57 |
| 61 | 635 | 410 | 73.5 | 71.8 | 213 | 598 | 560 | 834 | 80 | 656 | 432 | 1076 | 57 |
All measurements in millimetres unless marked (°) for angles.
