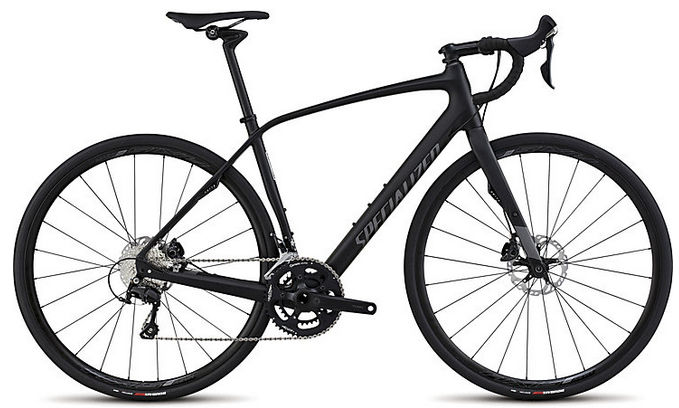

2015 Specialized Diverge Carbon MKI geometry
Full frame geometry for the 2015 Specialized Diverge Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 525 | 378 | 75.5 | 71.3 | 100 | 518 | 418 | 714 | 77 | 589 | 412 | 989 | 51 | 63 |
| 52 | 544 | 378 | 74 | 71.3 | 120 | 536 | 447 | 740 | 77 | 595 | 412 | 995 | 51 | 63 |
| 54 | 564 | 380 | 73.5 | 72 | 140 | 548 | 466 | 764 | 76 | 597 | 415 | 1000 | 51 | 58 |
| 56 | 589 | 387 | 73.3 | 72.5 | 165 | 565 | 485 | 785 | 76 | 607 | 415 | 1011 | 51 | 55 |
| 58 | 621 | 391 | 73 | 72.5 | 200 | 582 | 530 | 829 | 74 | 621 | 418 | 1028 | 51 | 55 |
| 61 | 642 | 398 | 72.5 | 73 | 220 | 600 | 555 | 851 | 74 | 629 | 420 | 1039 | 51 | 52 |
| 64 | 657 | 409 | 72.5 | 73 | 235 | 616 | 590 | 0 | 74 | 645 | 420 | 1054 | 51 | 52 |
All measurements in millimetres unless marked (°) for angles.
