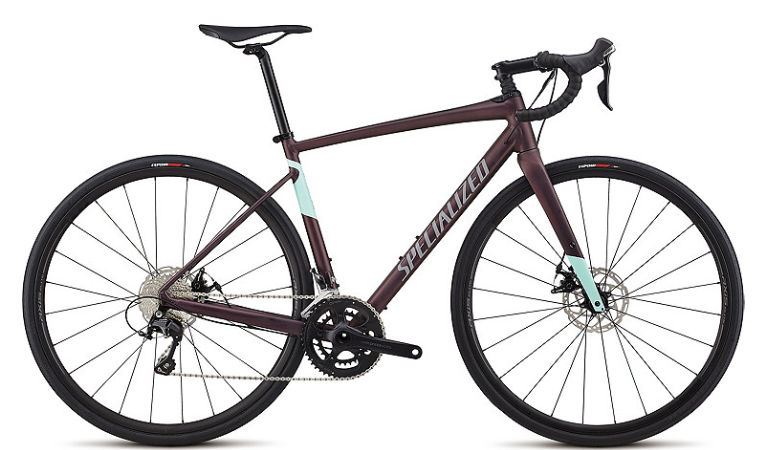

2018 Specialized Diverge Alloy Womens geometry
Full frame geometry for the 2018 Specialized Diverge Alloy Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 563 | 353 | 74 | 70.5 | 125 | 515 | 370 | 686 | 85 | 587 | 422 | 994 | 55 | 66 |
| 48 | 569 | 360 | 74 | 70.8 | 140 | 524 | 405 | 704 | 85 | 593 | 419 | 997 | 55 | 64 |
| 52 | 574 | 367 | 74 | 71 | 145 | 532 | 440 | 726 | 85 | 599 | 419 | 1004 | 55 | 62 |
| 54 | 592 | 373 | 73.5 | 71.9 | 158 | 549 | 473 | 752 | 85 | 597 | 421 | 1004 | 50 | 62 |
| 56 | 613 | 379 | 73.5 | 72.5 | 178 | 561 | 500 | 776 | 85 | 604 | 421 | 1011 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
