2026 Specialized · G

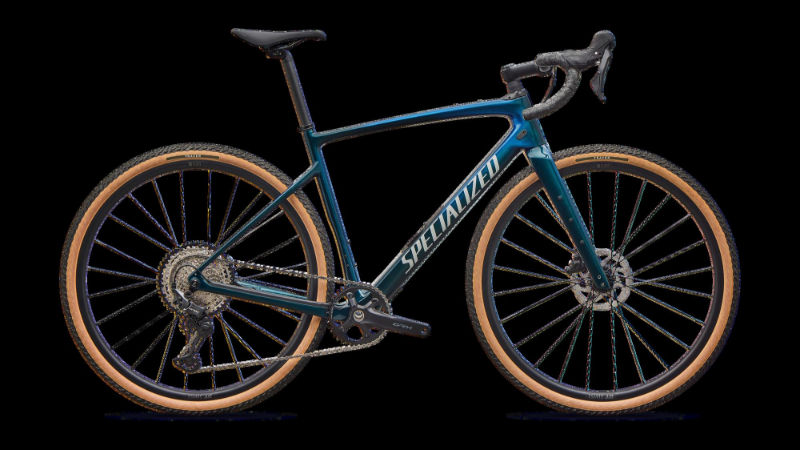

2026 Specialized Diverge 4 geometry
Full frame geometry for the 2026 Specialized Diverge 4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 563 | 365 | 74.5 | 70 | 90 | 521 | 400 | 700 | 85 | 604 | 430 | 1019 | 55 | 72 |
| 52 | 578 | 374 | 74 | 70.5 | 104 | 537 | 430 | 725 | 85 | 613 | 430 | 1031 | 55 | 68 |
| 54 | 592 | 387 | 74 | 71 | 116 | 556 | 470 | 754 | 85 | 626 | 430 | 1041 | 55 | 65 |
| 56 | 610 | 400 | 74 | 71 | 135 | 575 | 500 | 779 | 85 | 645 | 430 | 1060 | 55 | 65 |
| 58 | 634 | 412 | 74 | 71 | 161 | 593 | 530 | 805 | 85 | 665 | 430 | 1081 | 55 | 65 |
| 61 | 659 | 425 | 74 | 71 | 187 | 613 | 560 | 832 | 85 | 686 | 430 | 1102 | 55 | 65 |
All measurements in millimetres unless marked (°) for angles.
