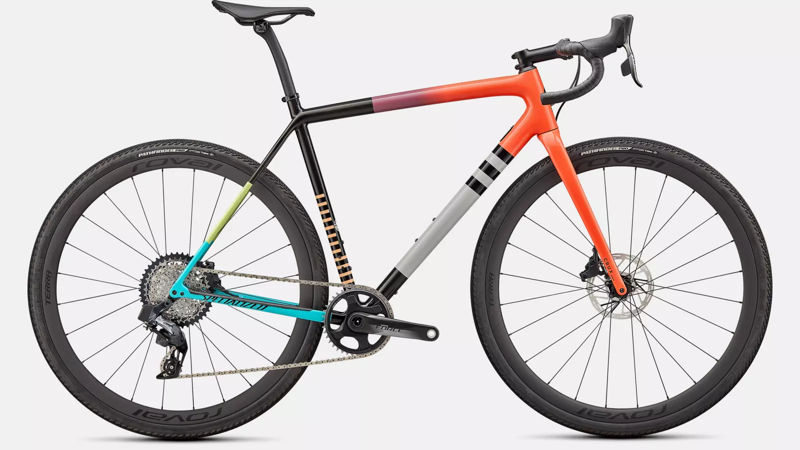

2022 Specialized Crux Series geometry
Full frame geometry for the 2022 Specialized Crux Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 530 | 375 | 75.5 | 70.5 | 100 | 512 | 466 | 749 | 74 | 594 | 425 | 1008 | 50 | 74 |
| 52 | 547 | 382 | 74 | 71.3 | 115 | 539 | 496 | 772 | 74 | 600 | 425 | 1014 | 50 | 69 |
| 54 | 560 | 388 | 74 | 71.5 | 130 | 549 | 521 | 794 | 72 | 608 | 425 | 1023 | 50 | 67 |
| 56 | 578 | 397 | 73.5 | 72 | 147 | 568 | 546 | 816 | 72 | 618 | 425 | 1033 | 50 | 64 |
| 58 | 598 | 405 | 73.5 | 72.3 | 167 | 582 | 576 | 841 | 72 | 630 | 425 | 1045 | 50 | 62 |
| 61 | 621 | 415 | 73.5 | 72.5 | 190 | 599 | 606 | 866 | 72 | 644 | 425 | 1059 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
