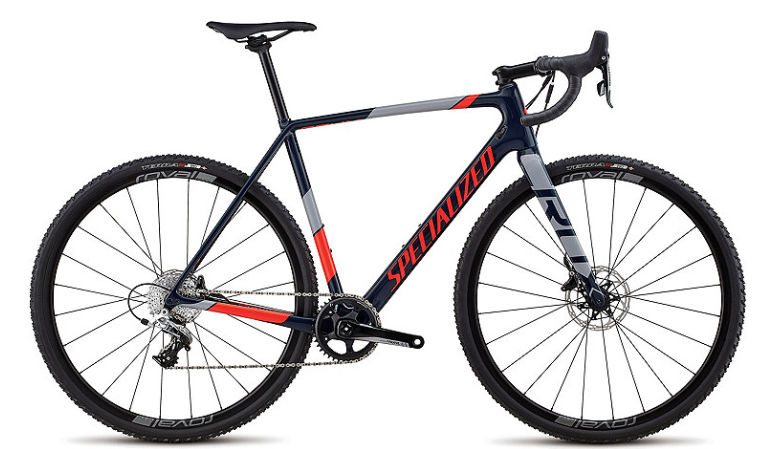

2018 Specialized Crux Carbon Disc MKII geometry
Full frame geometry for the 2018 Specialized Crux Carbon Disc MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 523 | 366 | 75.5 | 69.5 | 100 | 501 | 470 | 764 | 71 | 592 | 425 | 1007 | 50 | 78 |
| 49 | 540 | 369 | 75.5 | 70.5 | 115 | 509 | 490 | 782 | 71 | 592 | 425 | 1007 | 50 | 72 |
| 52 | 554 | 375 | 74 | 71.5 | 125 | 534 | 510 | 794 | 71 | 593 | 425 | 1008 | 50 | 65 |
| 54 | 566 | 382 | 73.5 | 71.5 | 140 | 550 | 530 | 808 | 69 | 605 | 425 | 1020 | 50 | 65 |
| 56 | 582 | 388 | 73.2 | 72 | 155 | 563 | 550 | 824 | 69 | 611 | 425 | 1026 | 50 | 62 |
| 58 | 597 | 395 | 73 | 72.5 | 170 | 578 | 570 | 840 | 67 | 618 | 425 | 1034 | 50 | 59 |
| 61 | 618 | 402 | 72.5 | 73 | 190 | 597 | 600 | 862 | 67 | 627 | 425 | 1043 | 50 | 55 |
All measurements in millimetres unless marked (°) for angles.
