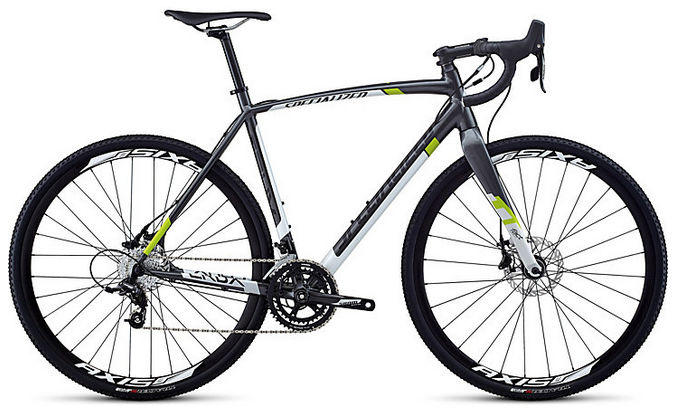

2013 Specialized Crux Al Disc MKI geometry
Full frame geometry for the 2013 Specialized Crux Al Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 522 | 366 | 75.5 | 69.5 | 100 | 501 | 460 | 764 | 71 | 593 | 425 | 1008 | 51 | 76 |
| 49 | 540 | 370 | 75.5 | 70.5 | 115 | 510 | 490 | 782 | 71 | 595 | 425 | 1009 | 51 | 70 |
| 52 | 554 | 375 | 74 | 71.5 | 125 | 534 | 520 | 795 | 71 | 595 | 425 | 1009 | 51 | 63 |
| 54 | 566 | 379 | 73.5 | 71.5 | 140 | 547 | 540 | 809 | 69 | 601 | 425 | 1016 | 49 | 65 |
| 56 | 583 | 384 | 73.2 | 72 | 155 | 559 | 560 | 825 | 69 | 606 | 425 | 1022 | 49 | 62 |
| 58 | 597 | 387 | 73 | 72.5 | 170 | 569 | 580 | 841 | 67 | 609 | 425 | 1025 | 49 | 59 |
| 61 | 618 | 392 | 72.5 | 73 | 190 | 587 | 610 | 862 | 67 | 615 | 425 | 1031 | 49 | 56 |
All measurements in millimetres unless marked (°) for angles.
