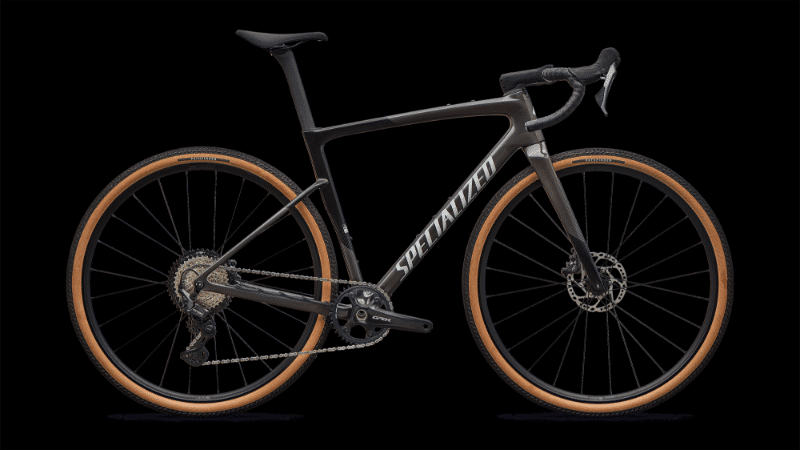

2026 Specialized Crux 5 geometry
Full frame geometry for the 2026 Specialized Crux 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 530 | 375 | 75.5 | 70.5 | 95 | 512 | 445 | 753 | 80 | 594 | 425 | 1008 | 51 | 72 |
| 52 | 547 | 382 | 74.5 | 70.8 | 110 | 534 | 456 | 766 | 80 | 604 | 425 | 1016 | 51 | 71 |
| 54 | 560 | 388 | 74.5 | 71 | 125 | 543 | 473 | 781 | 78 | 613 | 425 | 1026 | 51 | 69 |
| 56 | 578 | 400 | 74 | 71.5 | 142 | 566 | 497 | 803 | 78 | 626 | 425 | 1039 | 51 | 66 |
| 58 | 598 | 412 | 74 | 71.5 | 163 | 583 | 515 | 823 | 78 | 644 | 425 | 1057 | 51 | 66 |
| 61 | 621 | 425 | 74 | 71.5 | 188 | 603 | 545 | 849 | 78 | 665 | 425 | 1078 | 51 | 66 |
All measurements in millimetres unless marked (°) for angles.
