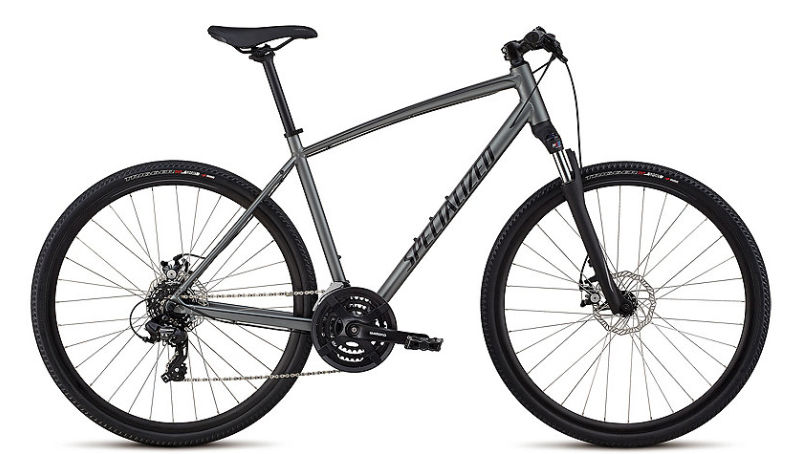

2018 Specialized CrossTrail geometry
Full frame geometry for the 2018 Specialized CrossTrail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 390 | 73 | 70 | 100 | 569 | 400 | 722 | 65 | 628 | 445 | 1065 | 42 | 84 |
| M | 602 | 400 | 73 | 70.5 | 115 | 584 | 450 | 742 | 65 | 638 | 445 | 1075 | 42 | 81 |
| L | 621 | 412 | 73 | 70.5 | 135 | 602 | 500 | 802 | 65 | 657 | 445 | 1094 | 42 | 81 |
| XL | 640 | 426 | 73 | 70.5 | 155 | 622 | 550 | 843 | 65 | 678 | 445 | 1115 | 42 | 81 |
All measurements in millimetres unless marked (°) for angles.
