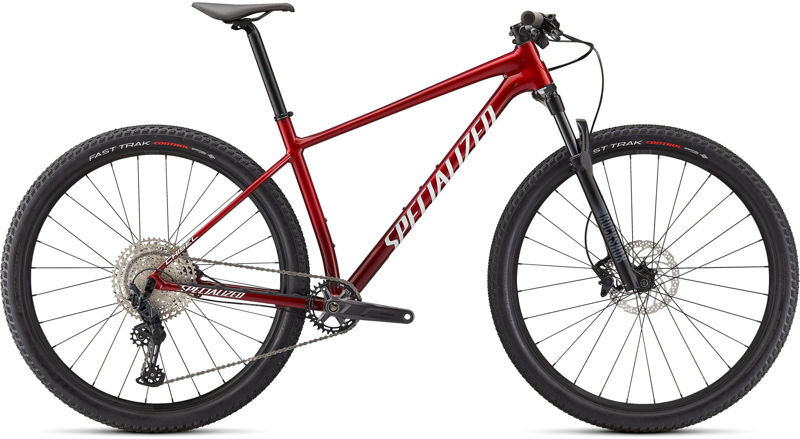

2021 Specialized Chisel geometry
Full frame geometry for the 2021 Specialized Chisel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 591 | 385 | 74 | 68 | 95 | 555 | 367 | 732 | 68 | 647 | 432 | 1070 | 44 | 103 |
| M | 605 | 430 | 74 | 68 | 95 | 603 | 430 | 792 | 63 | 699 | 432 | 1124 | 44 | 103 |
| S | 605 | 405 | 74 | 68 | 95 | 578 | 400 | 762 | 63 | 674 | 432 | 1099 | 44 | 103 |
| L | 619 | 455 | 74 | 68 | 110 | 632 | 470 | 816 | 63 | 730 | 432 | 1154 | 44 | 103 |
| XL | 633 | 480 | 74 | 68 | 125 | 661 | 520 | 847 | 63 | 760 | 432 | 1185 | 44 | 103 |
All measurements in millimetres unless marked (°) for angles.
