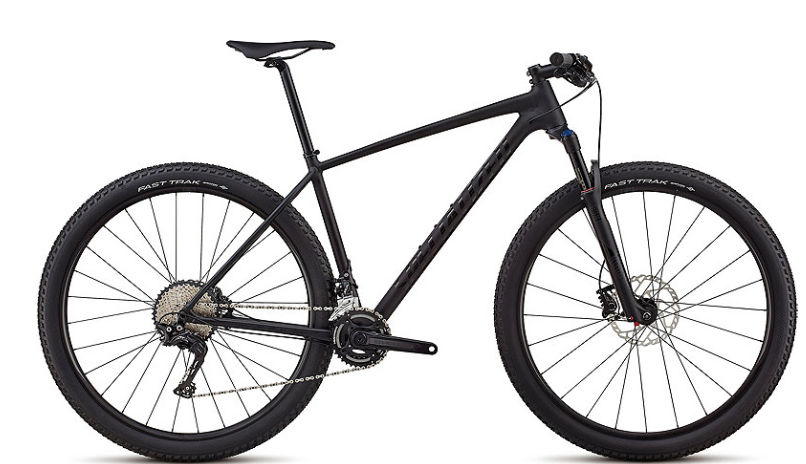

2018 Specialized Chisel Mens geometry
Full frame geometry for the 2018 Specialized Chisel Mens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 395 | 74 | 69.8 | 95 | 567 | 400 | 760 | 58 | 650 | 430 | 1073 | 51 | 82 |
| M | 605 | 418 | 74 | 69.8 | 95 | 594 | 430 | 790 | 58 | 676 | 430 | 1100 | 51 | 82 |
| L | 619 | 441 | 74 | 69.8 | 110 | 622 | 470 | 814 | 58 | 704 | 430 | 1128 | 51 | 82 |
| XL | 633 | 462 | 74 | 69.8 | 125 | 648 | 520 | 845 | 58 | 730 | 430 | 1154 | 51 | 82 |
All measurements in millimetres unless marked (°) for angles.
