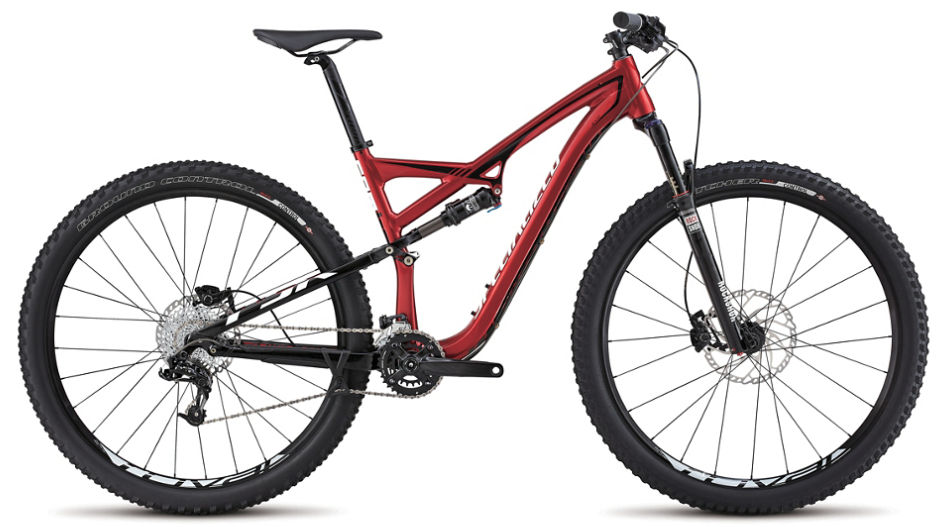

2015 Specialized Camber Evo 29 geometry
Full frame geometry for the 2015 Specialized Camber Evo 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 387 | 73.8 | 68.8 | 90 | 560 | 394 | 736 | 451 | 1104 |
| M | 609 | 416 | 73.6 | 68.8 | 100 | 592 | 430 | 741 | 451 | 1135 |
| L | 633 | 432 | 73.3 | 68.8 | 125 | 617 | 468 | 745 | 451 | 1161 |
| XL | 657 | 454 | 73 | 68.8 | 150 | 645 | 523 | 756 | 451 | 1190 |
All measurements in millimetres unless marked (°) for angles.
