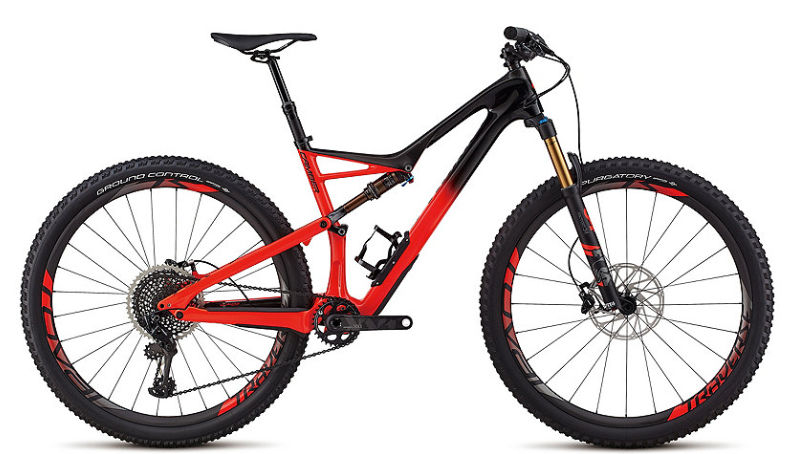

2018 Specialized Camber Carbon 29 MKII geometry
Full frame geometry for the 2018 Specialized Camber Carbon 29 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 609 | 427 | 75 | 68.5 | 95 | 590 | 430 | 735 | 42 | 701 | 437 | 1135 | 46 | 97 |
| S | 609 | 399 | 75 | 68.5 | 95 | 562 | 396 | 732 | 42 | 673 | 437 | 1107 | 46 | 97 |
| L | 627 | 445 | 75 | 68.5 | 115 | 613 | 468 | 752 | 42 | 726 | 437 | 1160 | 46 | 97 |
| XL | 655 | 471 | 75 | 68.5 | 145 | 647 | 523 | 766 | 42 | 763 | 437 | 1197 | 46 | 97 |
All measurements in millimetres unless marked (°) for angles.
