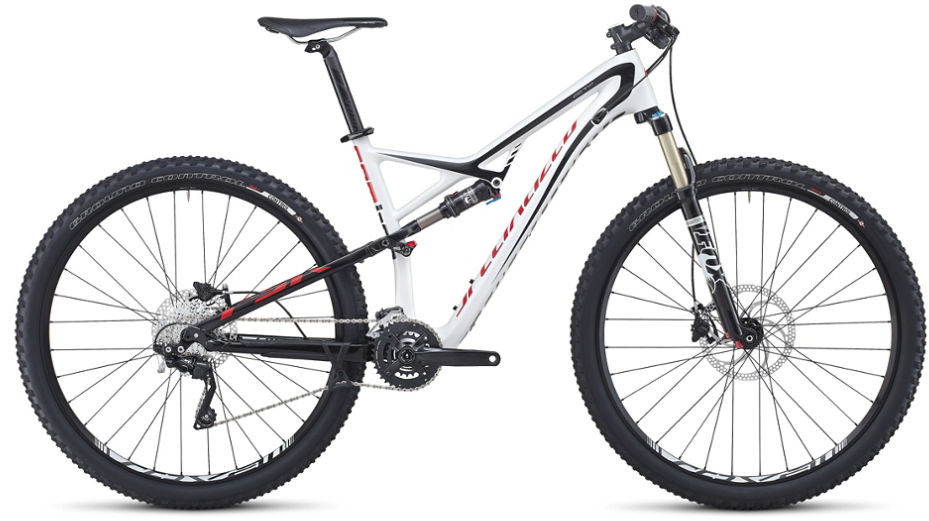

2014 Specialized Camber Carbon 29 MKI geometry
Full frame geometry for the 2014 Specialized Camber Carbon 29 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 400 | 75 | 70 | 90 | 555 | 394 | 740 | 450 | 1100 |
| M | 600 | 428 | 74.8 | 70 | 100 | 587 | 430 | 745 | 450 | 1131 |
| L | 624 | 445 | 74.5 | 70 | 125 | 612 | 468 | 749 | 450 | 1156 |
| XL | 647 | 466 | 74.2 | 70 | 150 | 642 | 523 | 760 | 450 | 1186 |
All measurements in millimetres unless marked (°) for angles.
