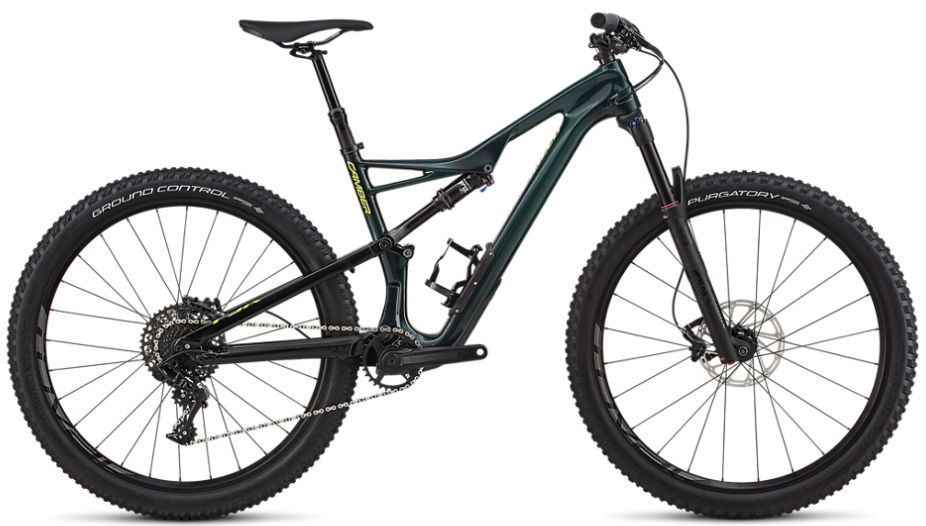

2017 Specialized Camber Carbon 27.5 geometry
Full frame geometry for the 2017 Specialized Camber Carbon 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 580 | 399 | 75 | 68 | 105 | 554 | 396 | 725 | 23 | 670 | 420 | 1089 | 42 | 97 |
| M | 590 | 425 | 75 | 68 | 115 | 583 | 430 | 730 | 23 | 700 | 420 | 1119 | 42 | 97 |
| L | 599 | 454 | 75 | 68 | 125 | 614 | 468 | 743 | 23 | 732 | 420 | 1151 | 42 | 97 |
| XL | 608 | 475 | 75 | 68 | 95 | 638 | 523 | 752 | 23 | 757 | 420 | 1176 | 42 | 97 |
All measurements in millimetres unless marked (°) for angles.
