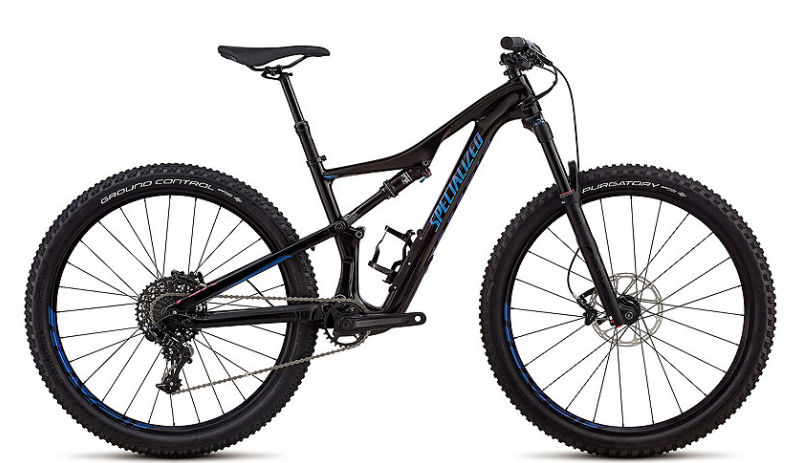

2018 Specialized Camber Carbon 27.5 Womens geometry
Full frame geometry for the 2018 Specialized Camber Carbon 27.5 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 578 | 380 | 75.5 | 67.5 | 95 | 530 | 386 | 709 | 23 | 655 | 420 | 1074 | 42 | 100 |
| S | 580 | 399 | 75 | 68 | 95 | 554 | 396 | 724 | 23 | 670 | 420 | 1089 | 42 | 97 |
| M | 590 | 425 | 75 | 68 | 105 | 583 | 430 | 728 | 23 | 700 | 420 | 1119 | 42 | 97 |
| L | 599 | 454 | 75 | 68 | 115 | 614 | 468 | 743 | 23 | 732 | 420 | 1151 | 42 | 97 |
All measurements in millimetres unless marked (°) for angles.
