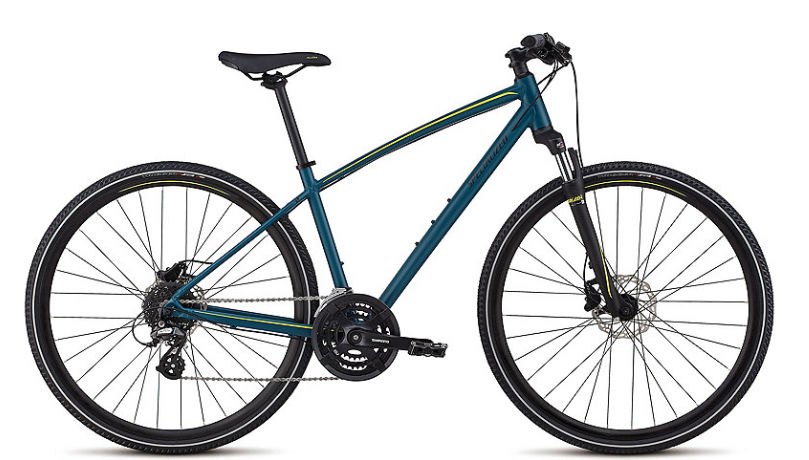

2018 Specialized Ariel geometry
Full frame geometry for the 2018 Specialized Ariel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 580 | 378 | 73 | 70 | 95 | 555 | 355 | 697 | 65 | 613 | 445 | 1051 | 42 | 87 |
| S | 594 | 390 | 73 | 70 | 110 | 572 | 375 | 725 | 65 | 630 | 445 | 1067 | 42 | 87 |
| M | 611 | 400 | 73 | 70 | 125 | 587 | 425 | 758 | 65 | 641 | 445 | 1078 | 42 | 87 |
| L | 630 | 412 | 73 | 70 | 145 | 604 | 475 | 790 | 65 | 659 | 445 | 1096 | 42 | 87 |
All measurements in millimetres unless marked (°) for angles.
