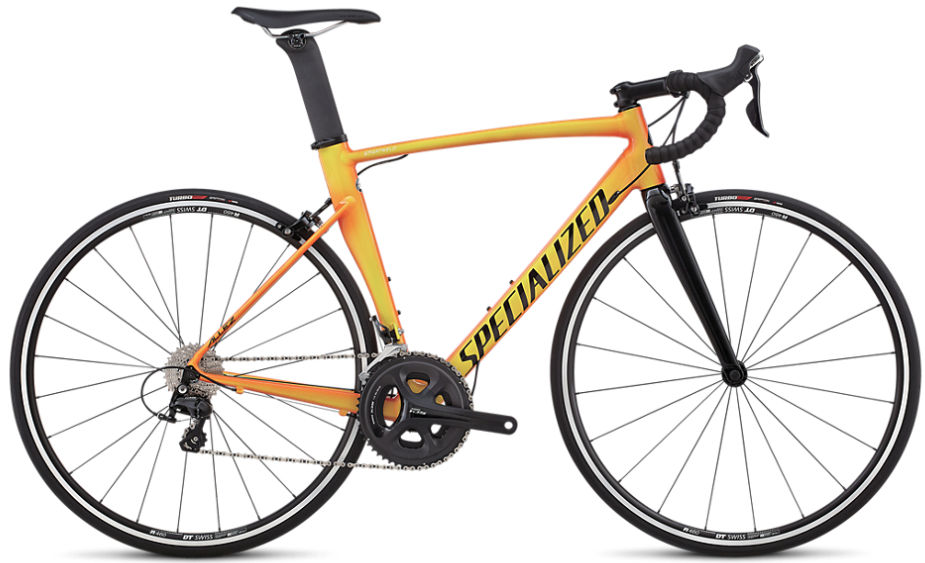

2018 Specialized Allez Sprint geometry
Full frame geometry for the 2018 Specialized Allez Sprint, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 502 | 375 | 74 | 72.2 | 100 | 519 | 460 | 732 | 69 | 564 | 405 | 959 | 44 | 63 |
| 52 | 514 | 380 | 74 | 73 | 110 | 527 | 480 | 746 | 69 | 566 | 405 | 961 | 44 | 58 |
| 54 | 533 | 385 | 74 | 73 | 130 | 538 | 500 | 766 | 69 | 577 | 405 | 972 | 44 | 58 |
| 56 | 554 | 395 | 74 | 73.5 | 150 | 554 | 520 | 784 | 69 | 589 | 405 | 984 | 44 | 55 |
| 58 | 583 | 400 | 74 | 73.5 | 180 | 567 | 540 | 808 | 69 | 602 | 405 | 997 | 44 | 55 |
| 61 | 604 | 405 | 74 | 74 | 200 | 578 | 570 | 834 | 69 | 608 | 407 | 1005 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
