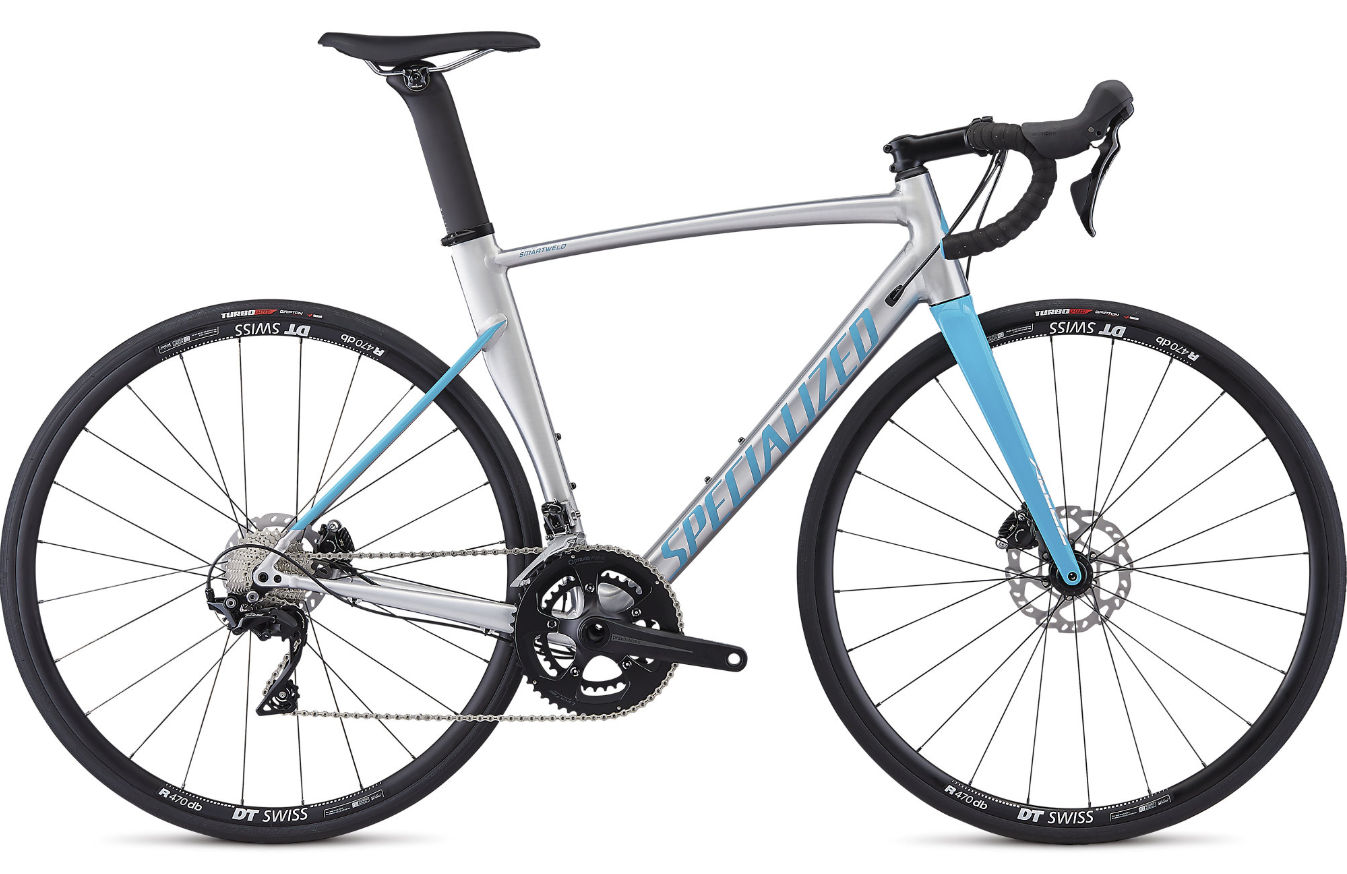

2019 Specialized Allez Sprint Disc geometry
Full frame geometry for the 2019 Specialized Allez Sprint Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 507 | 375 | 74 | 72.2 | 110 | 520 | 460 | 799 | 69 | 410 | 966 | 44 | 63 |
| 52 | 519 | 380 | 74 | 73 | 120 | 529 | 480 | 813 | 69 | 410 | 968 | 44 | 58 |
| 54 | 538 | 385 | 74 | 73 | 140 | 539 | 500 | 833 | 69 | 410 | 979 | 44 | 58 |
| 56 | 559 | 395 | 74 | 73.5 | 160 | 555 | 520 | 849 | 69 | 410 | 990 | 44 | 55 |
| 58 | 588 | 400 | 74 | 73.5 | 190 | 569 | 540 | 876 | 69 | 410 | 1004 | 44 | 55 |
| 61 | 609 | 405 | 74 | 74 | 210 | 580 | 570 | 901 | 69 | 410 | 1010 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
