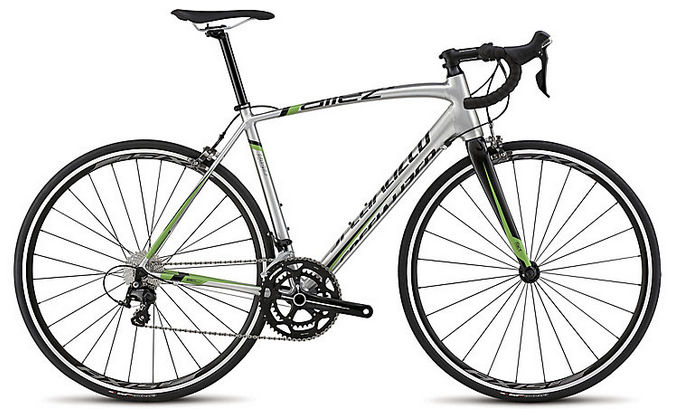

2014 Specialized Allez Smartweld geometry
Full frame geometry for the 2014 Specialized Allez Smartweld, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 523 | 380 | 75.5 | 72.3 | 120 | 518 | 460 | 741 | 72 | 576 | 405 | 970 | 45 | 62 |
| 52 | 523 | 385 | 74 | 73 | 120 | 537 | 480 | 777 | 72 | 576 | 405 | 970 | 45 | 57 |
| 54 | 547 | 387 | 73.5 | 73 | 145 | 548 | 500 | 798 | 69 | 583 | 405 | 978 | 45 | 57 |
| 56 | 574 | 395 | 73.3 | 73.5 | 170 | 565 | 520 | 816 | 69 | 591 | 405 | 986 | 43 | 56 |
| 58 | 606 | 402 | 73 | 73.5 | 205 | 582 | 540 | 836 | 68 | 605 | 407 | 1003 | 43 | 56 |
| 61 | 631 | 408 | 72.5 | 74 | 230 | 600 | 580 | 854 | 68 | 613 | 410 | 1013 | 43 | 53 |
All measurements in millimetres unless marked (°) for angles.
