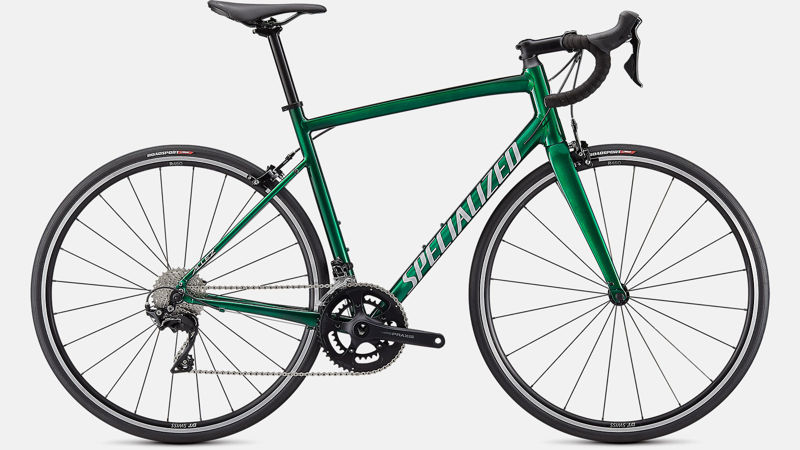

2021 Specialized Allez Elite geometry
Full frame geometry for the 2021 Specialized Allez Elite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 516 | 365 | 75.3 | 71.5 | 110 | 501 | — | 697 | 77 | 567 | 420 | 974 | 47 | 64 |
| 49 | 535 | 374 | 75.3 | 72.3 | 125 | 515 | 430 | 720 | 77 | 575 | 420 | 982 | 47 | 59 |
| 52 | 552 | 376 | 73.3 | 73 | 140 | 542 | 460 | 745 | 77 | 576 | 420 | 983 | 47 | 55 |
| 54 | 570 | 380 | 73.3 | 73 | 155 | 552 | 490 | 763 | 76 | 585 | 420 | 991 | 47 | 55 |
| 56 | 596 | 385 | 73.3 | 73.5 | 180 | 564 | 510 | 785 | 76 | 593 | 420 | 999 | 47 | 52 |
| 58 | 627 | 390 | 73.3 | 73.5 | 215 | 579 | 530 | 813 | 74.5 | 607 | 420 | 1014 | 47 | 52 |
| 61 | 649 | 396 | 73.3 | 74 | 235 | 591 | 550 | 839 | 74.5 | 614 | 420 | 1021 | — | 49 |
All measurements in millimetres unless marked (°) for angles.
