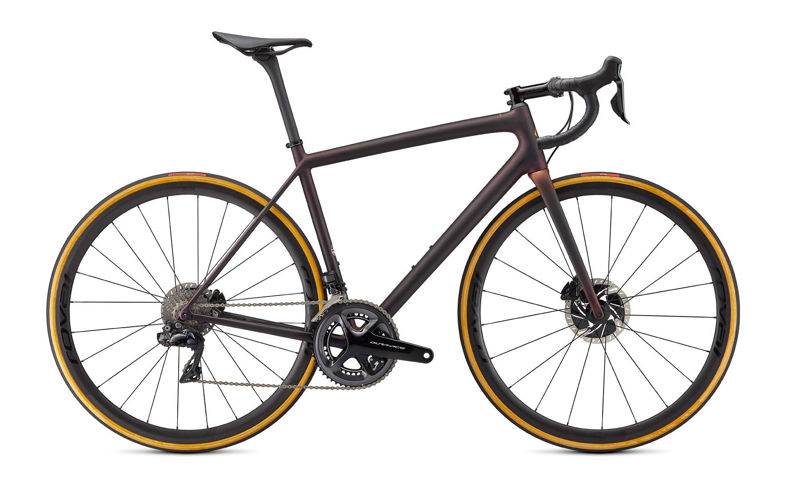

2021 Specialized Aethos geometry
Full frame geometry for the 2021 Specialized Aethos, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 514 | 375 | 75.5 | 71.8 | 109 | 508 | 431 | 705 | 74 | 574 | 410 | 973 | 47 | 63 |
| 52 | 527 | 380 | 74 | 72.5 | 120 | 531 | 462 | 728 | 74 | 577 | 410 | 975 | 47 | 58 |
| 54 | 544 | 384 | 74 | 73 | 137 | 540 | 481 | 748 | 72 | 579 | 410 | 978 | 44 | 58 |
| 56 | 565 | 395 | 73.5 | 73.5 | 157 | 562 | 504 | 769 | 72 | 591 | 410 | 991 | 44 | 55 |
| 58 | 591 | 402 | 73.5 | 73.5 | 184 | 577 | 532 | 796 | 72 | 606 | 410 | 1005 | 44 | 55 |
| 61 | 612 | 408 | 73 | 74 | 204 | 595 | 567 | 824 | 72 | 613 | 410 | 1012 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
