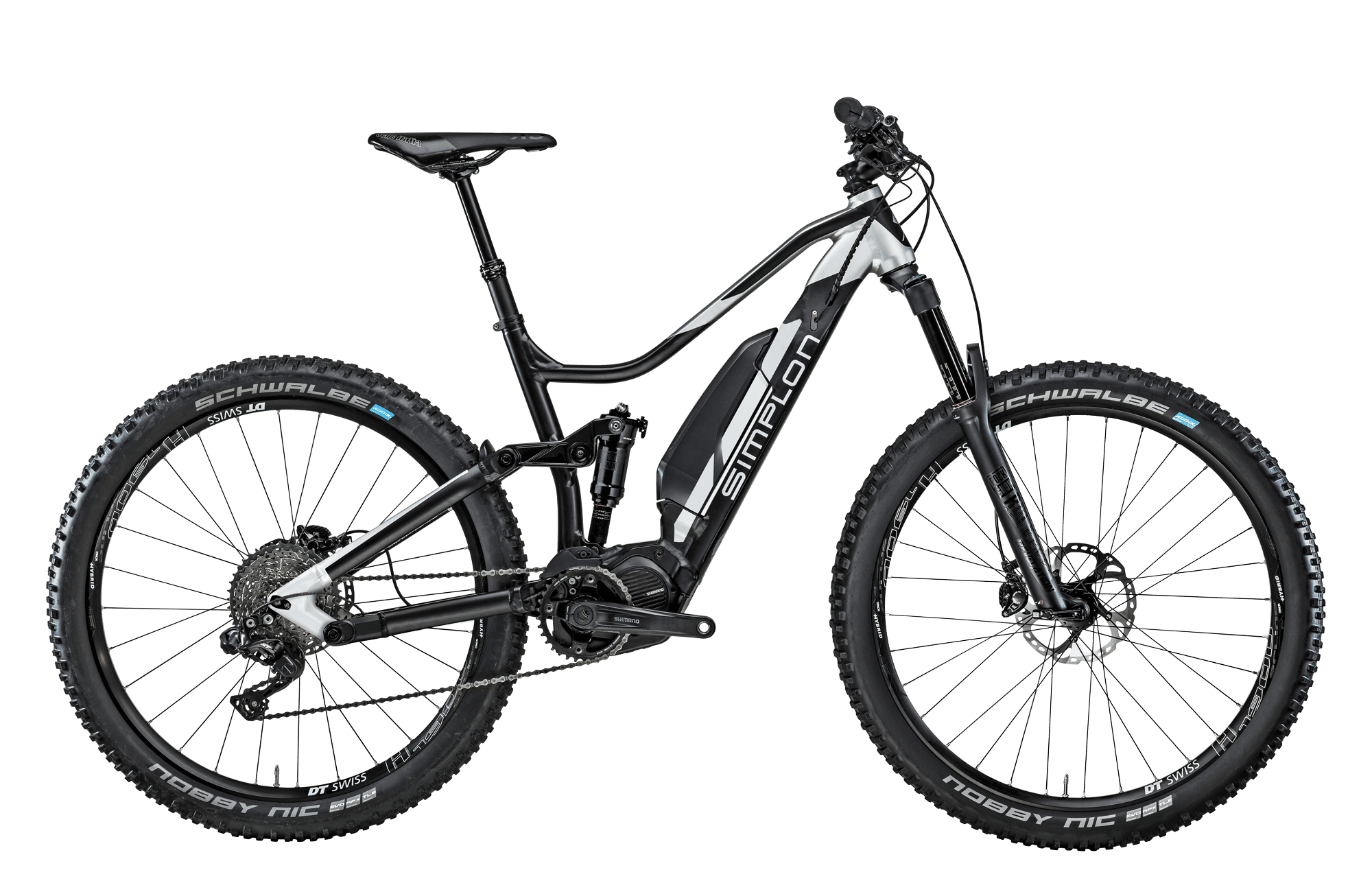

2018 Simplon Steamer Compact geometry
Full frame geometry for the 2018 Simplon Steamer Compact, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 585 | 388 | 74.5 | 67.5 | 110 | 550 | 380 | 673 | 19 | 440 | 1112 | 46 |
| S | 594 | 405 | 74.5 | 67.5 | 120 | 570 | 400 | 675 | 19 | 440 | 1133 | 46 |
| M | 603 | 418 | 74.5 | 67.5 | 130 | 585 | 440 | 702 | 19 | 440 | 1149 | 46 |
All measurements in millimetres unless marked (°) for angles.
