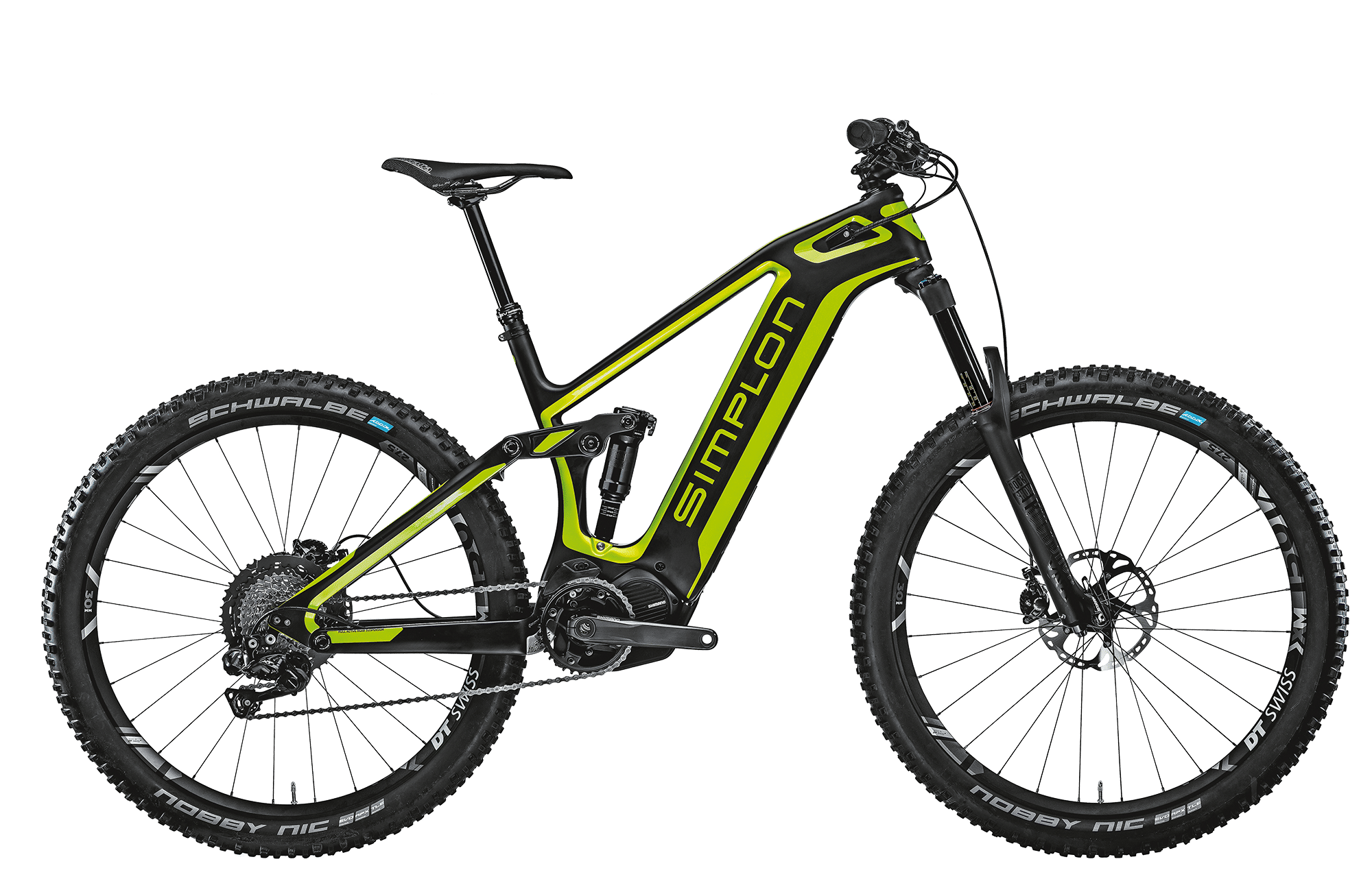

2018 Simplon Steamer Carbon geometry
Full frame geometry for the 2018 Simplon Steamer Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 622 | 422 | 74 | 67 | 120 | 600 | 440 | 15 | 440 | 1174 | 51 |
| S | 622 | 402 | 74 | 67 | 120 | 580 | 390 | 15 | 440 | 1154 | 51 |
| L | 631 | 439 | 74 | 67 | 130 | 620 | 480 | 15 | 440 | 1196 | 51 |
| XL | 640 | 456 | 74 | 67 | 140 | 640 | 520 | 15 | 440 | 1217 | 51 |
All measurements in millimetres unless marked (°) for angles.
