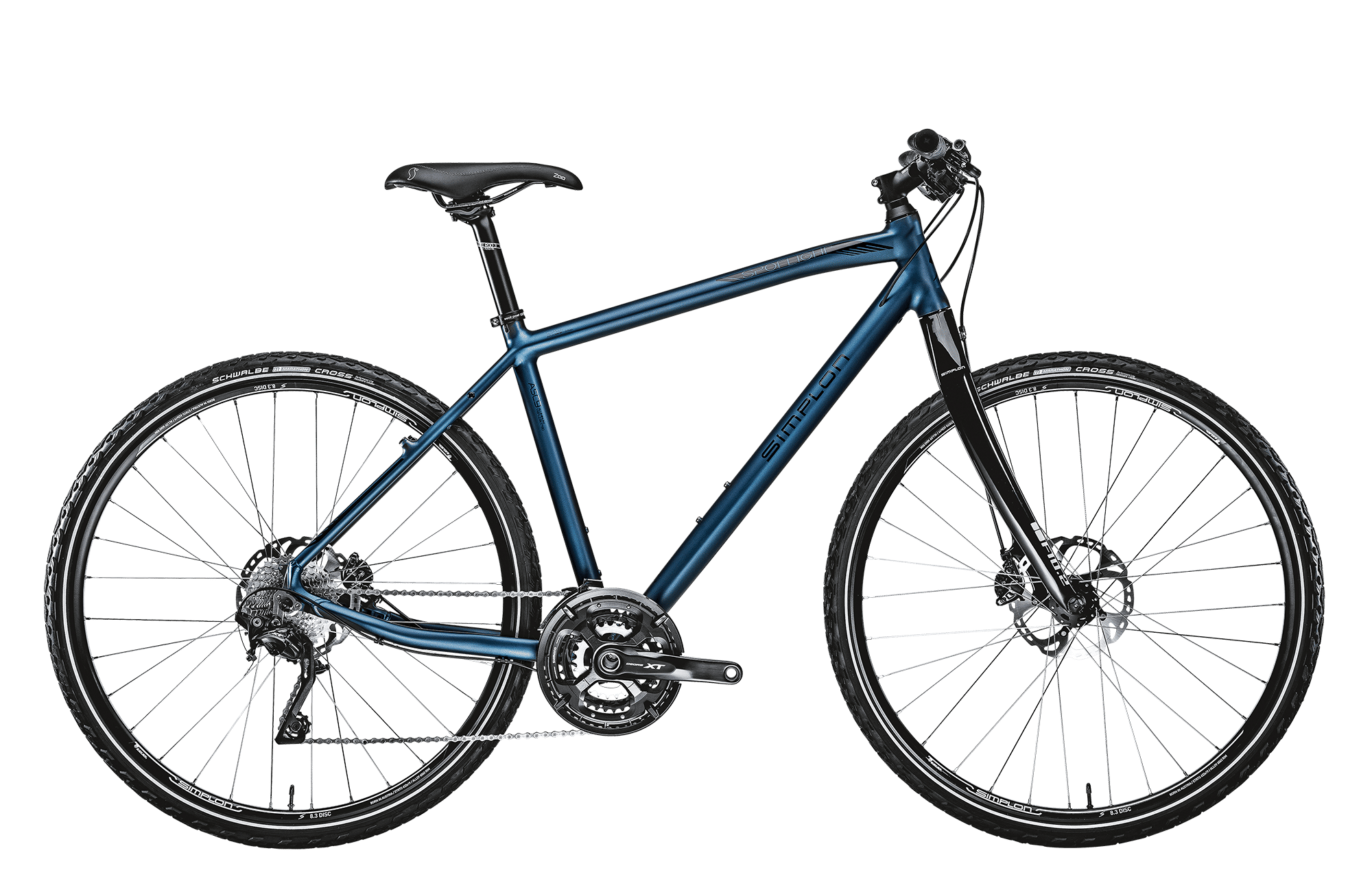

2018 Simplon Spotlight Cross geometry
Full frame geometry for the 2018 Simplon Spotlight Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 41W | 612 | 388 | 73 | 70 | 125 | 575 | 410 | 75 | 460 | 1090 | 50 |
| 46W | 612 | 393 | 73 | 70 | 125 | 580 | 460 | 75 | 460 | 1095 | 50 |
| 46M | 613 | 398 | 73 | 69 | 130 | 585 | 460 | 75 | 460 | 1112 | 50 |
| 51M | 626 | 408 | 73 | 70 | 140 | 600 | 510 | 75 | 460 | 1116 | 50 |
| 51W | 626 | 398 | 73 | 70 | 140 | 590 | 510 | 75 | 460 | 1106 | 50 |
| 56W | 650 | 416 | 73 | 71 | 160 | 615 | 560 | 75 | 460 | 1121 | 50 |
| 61M | 650 | 426 | 73 | 71 | 160 | 625 | 506 | 75 | 460 | 1131 | 50 |
All measurements in millimetres unless marked (°) for angles.
