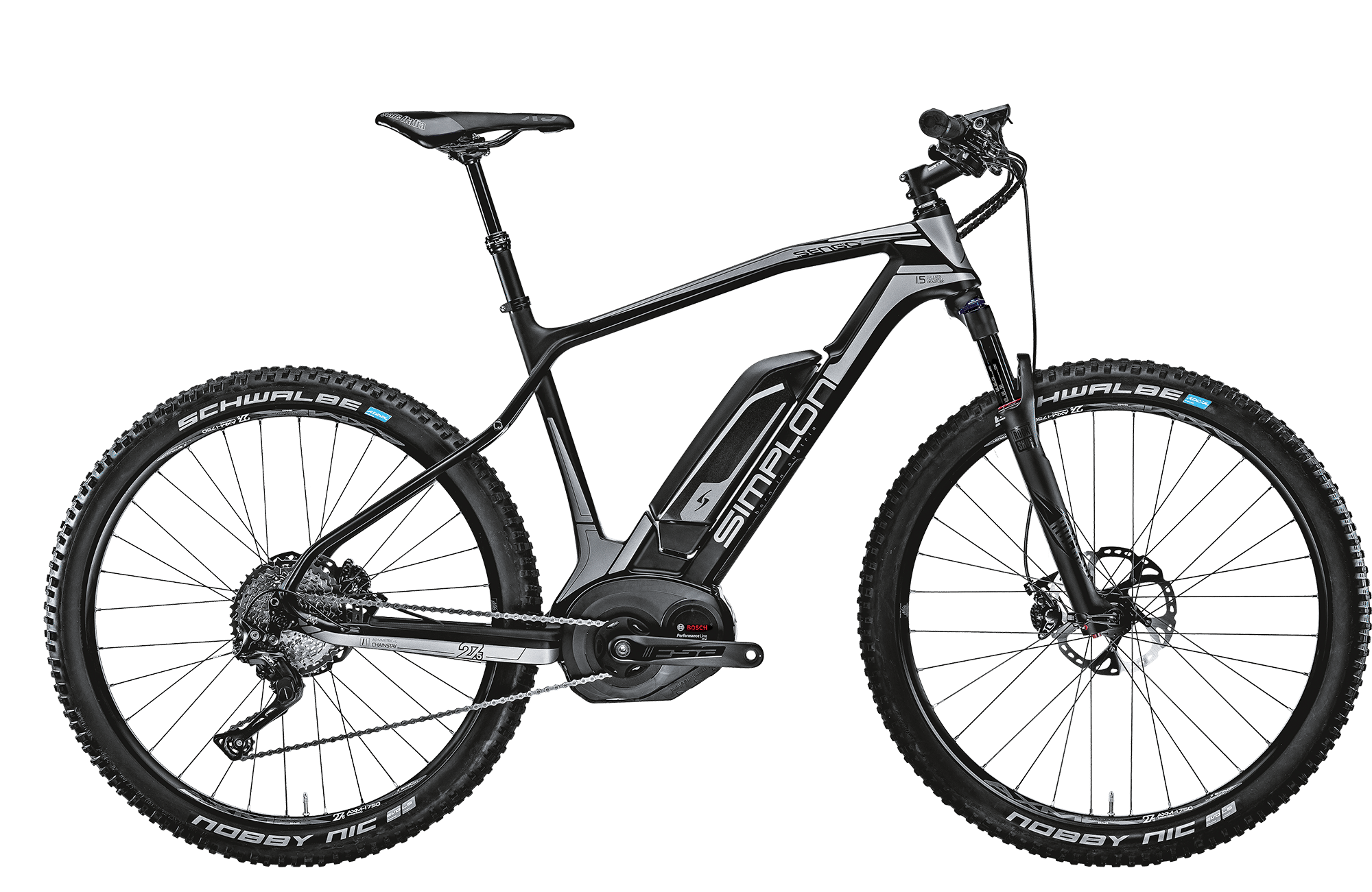

2018 Simplon Sengo 275 geometry
Full frame geometry for the 2018 Simplon Sengo 275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 573 | 374 | 72.5 | 70 | 95 | 555 | 400 | 734 | 40 | 470 | 1081 | 42 |
| 45 | 577 | 413 | 72.5 | 70 | 100 | 595 | 450 | 768 | 40 | 470 | 1122 | 42 |
| 50 | 596 | 422 | 72.5 | 70 | 120 | 610 | 500 | 794 | 40 | 470 | 1137 | 42 |
| 55 | 620 | 445 | 72.5 | 70 | 145 | 640 | 550 | 823 | 40 | 470 | 1169 | 42 |
All measurements in millimetres unless marked (°) for angles.
