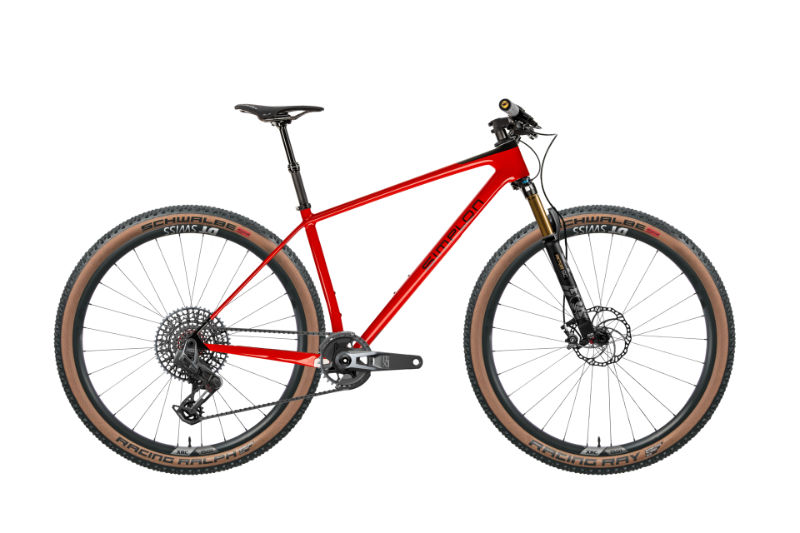

2026 Simplon Razorblade geometry
Full frame geometry for the 2026 Simplon Razorblade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36/XS | 595 | 395 | 74.5 | 68.5 | 86 | 560 | 360 | 706 | 60 | 425 | 1074 | 44 |
| 40/S | 600 | 425 | 74.5 | 68.5 | 92 | 591 | 400 | 733 | 60 | 425 | 1106 | 44 |
| 43/M | 605 | 435 | 74.5 | 68.5 | 97 | 603 | 430 | 753 | 60 | 425 | 1118 | 44 |
| 46/L | 615 | 455 | 74.5 | 68.5 | 108 | 626 | 460 | 771 | 60 | 425 | 1142 | 44 |
| 53/XL | 625 | 475 | 74.5 | 68.5 | 119 | 648 | 530 | 822 | 60 | 425 | 1166 | 44 |
All measurements in millimetres unless marked (°) for angles.
