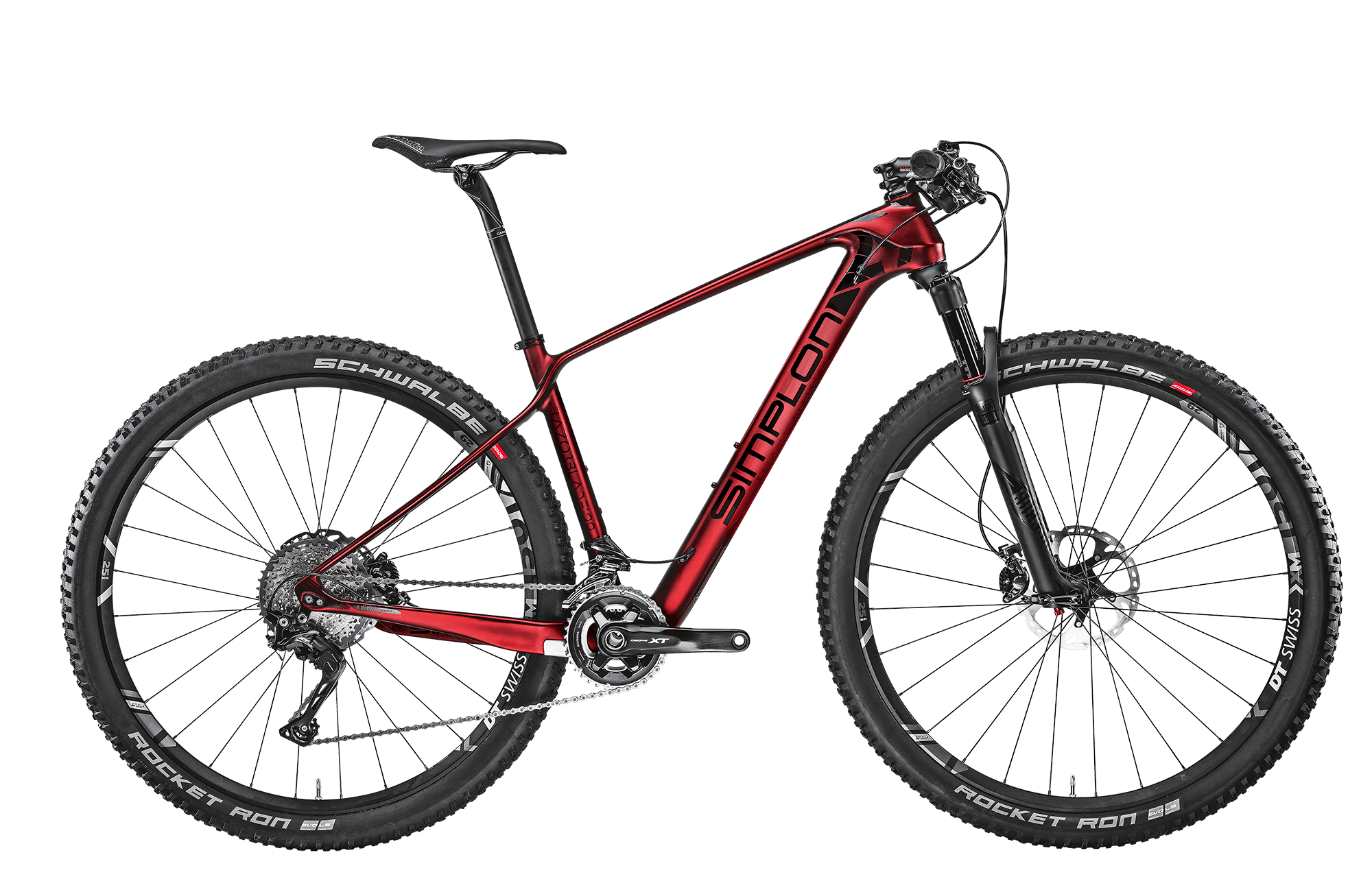

2018 Simplon Razorblade 29 geometry
Full frame geometry for the 2018 Simplon Razorblade 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 393 | 73.5 | 70.5 | 100 | 575 | 390 | 727 | 60 | 432 | 1066 | 46 |
| M | 621 | 406 | 73.5 | 70.5 | 105 | 590 | 440 | 763 | 60 | 432 | 1081 | 46 |
| L | 630 | 423 | 73.5 | 70.5 | 110 | 610 | 490 | 794 | 65 | 432 | 1099 | 46 |
| XL | 640 | 441 | 73.5 | 70.5 | 120 | 630 | 540 | 824 | 65 | 432 | 1120 | 46 |
All measurements in millimetres unless marked (°) for angles.
