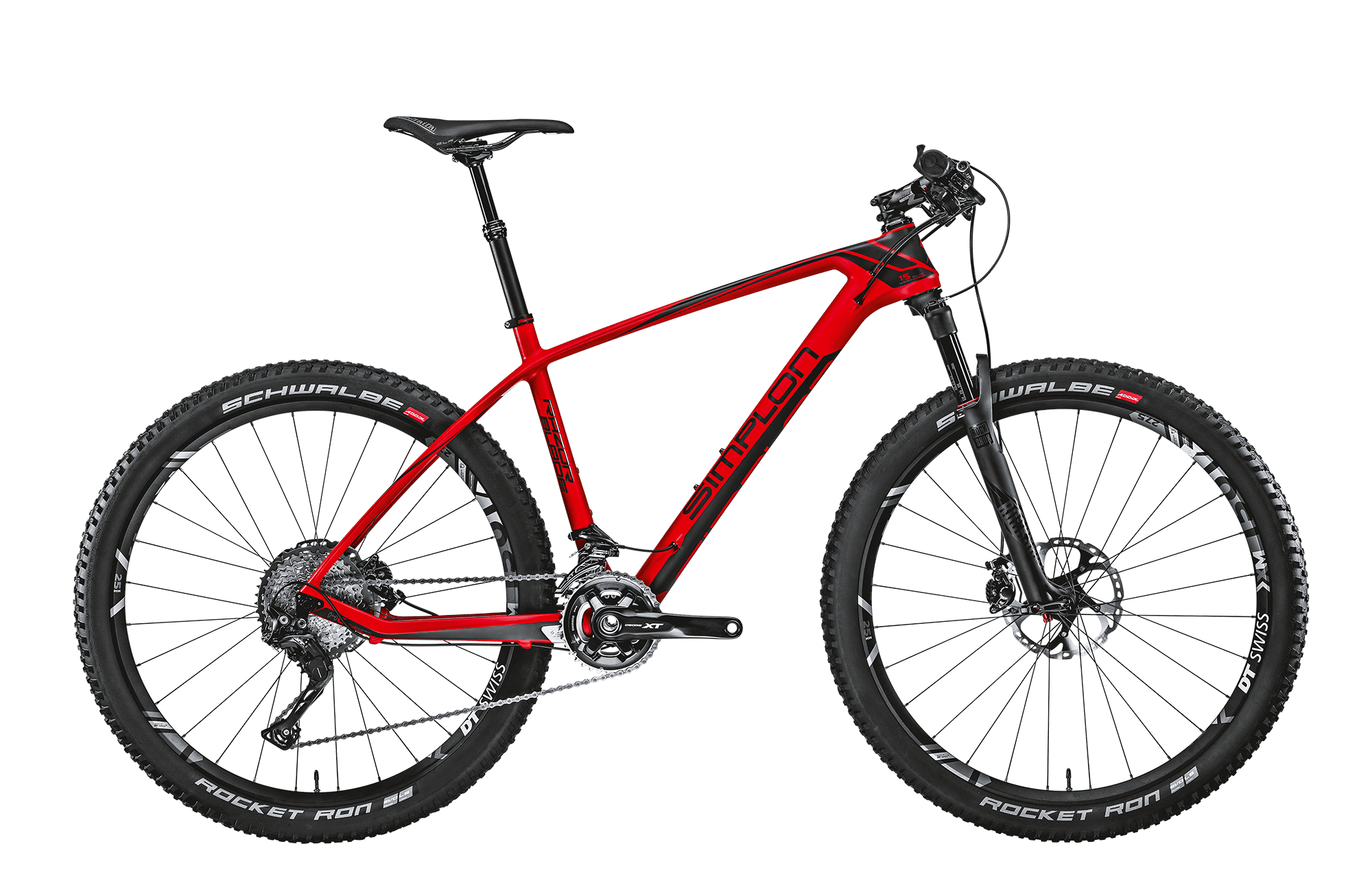

2018 Simplon Razorblade 275 geometry
Full frame geometry for the 2018 Simplon Razorblade 275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 406 | 73.5 | 70 | 85 | 570 | 420 | 735 | 30 | 430 | 1070 | 42 |
| XS | 555 | 396 | 73.5 | 70 | 85 | 560 | 380 | 715 | 30 | 430 | 1060 | 42 |
| M | 569 | 416 | 73.5 | 70 | 100 | 585 | 460 | 766 | 30 | 430 | 1087 | 42 |
All measurements in millimetres unless marked (°) for angles.
