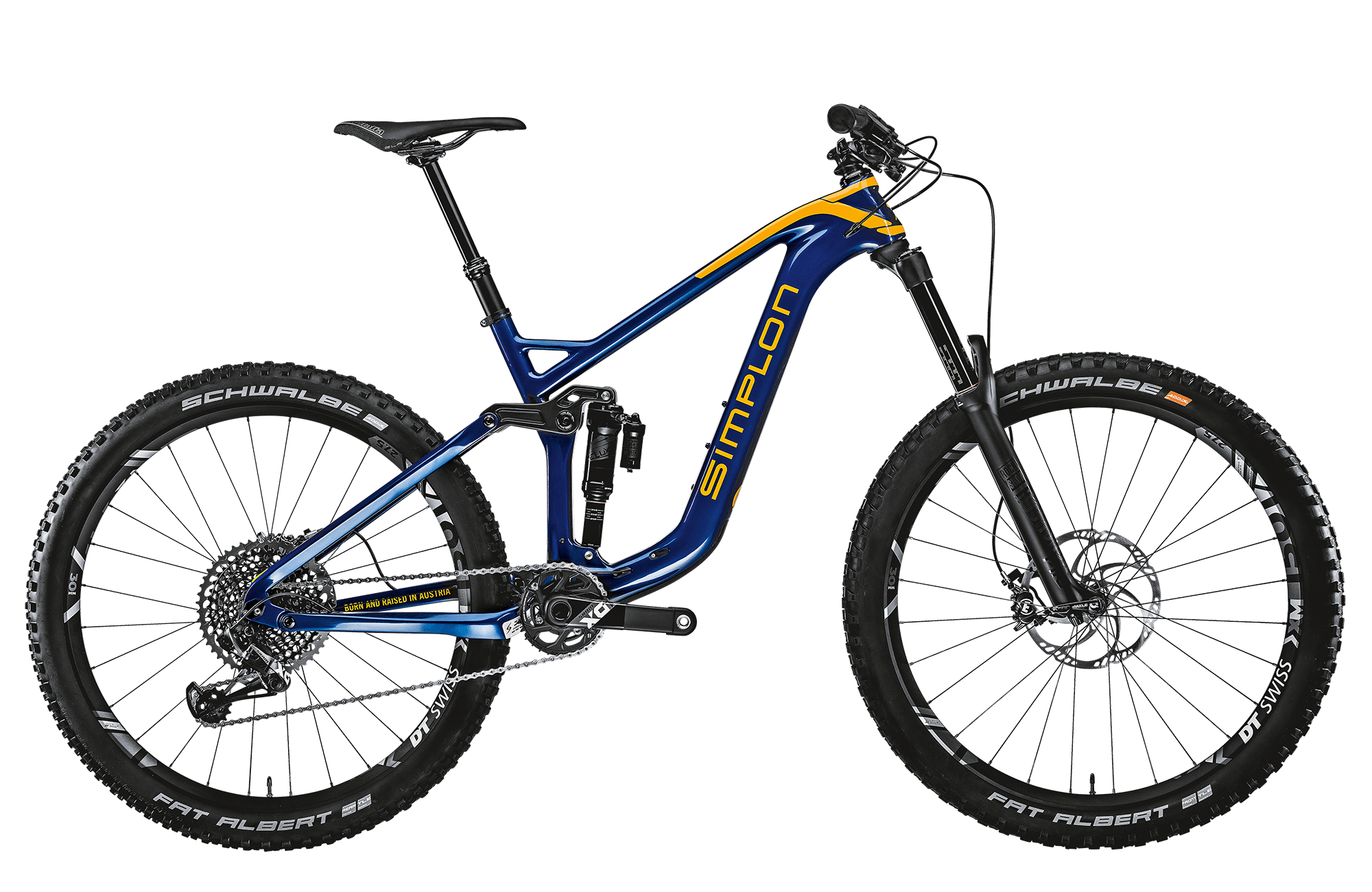

2018 Simplon Rapcon 160 geometry
Full frame geometry for the 2018 Simplon Rapcon 160, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 412 | 74.5 | 66 | 90 | 575 | 385 | 755 | 1157 | 51 |
| M | 598 | 429 | 74.5 | 66 | 100 | 595 | 435 | 755 | 1179 | 51 |
| L | 612 | 450 | 74.5 | 66 | 115 | 620 | 485 | 757 | 1206 | 51 |
| XL | 626 | 466 | 74.5 | 66 | 130 | 640 | 535 | 802 | 1228 | 51 |
All measurements in millimetres unless marked (°) for angles.
